Supported cameras

	Camera	Live view	Camera control	Gimbal	Notes

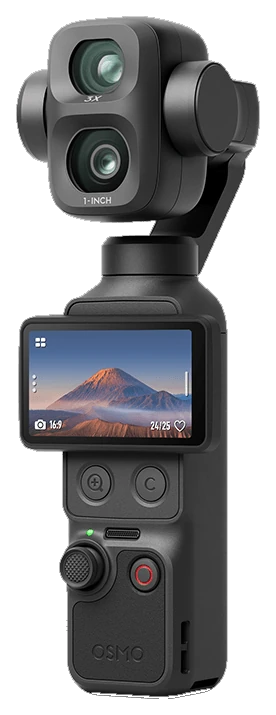

	Osmo Pocket 4 Pro	✅	✅	✅	Primary test camera. 1×/3× optical, 6×/12× zoom. D-Log2 hops to D-Log when you zoom.

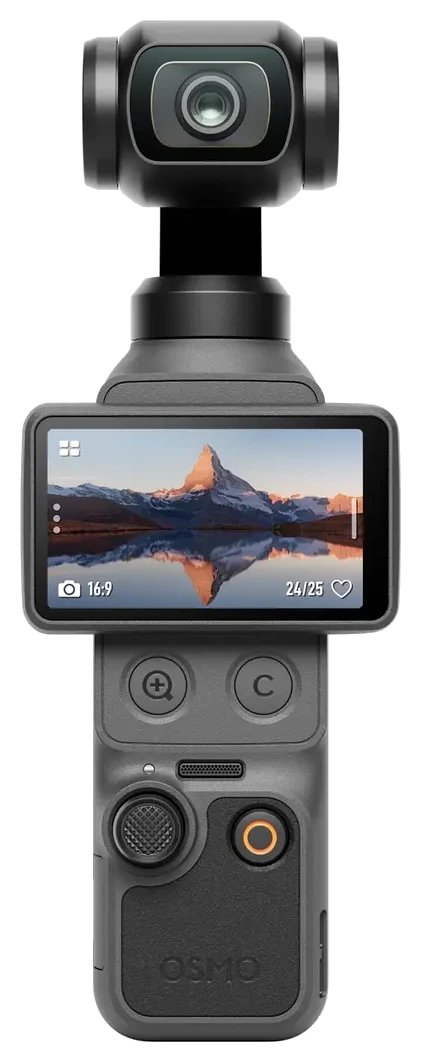

	Osmo Pocket 4	✅	✅	✅	1×/2×/4× zoom.

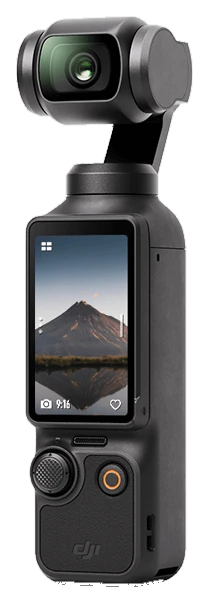

	Osmo Pocket 3	✅	✅	✅	The wider format and firmware matrix still needs testing.

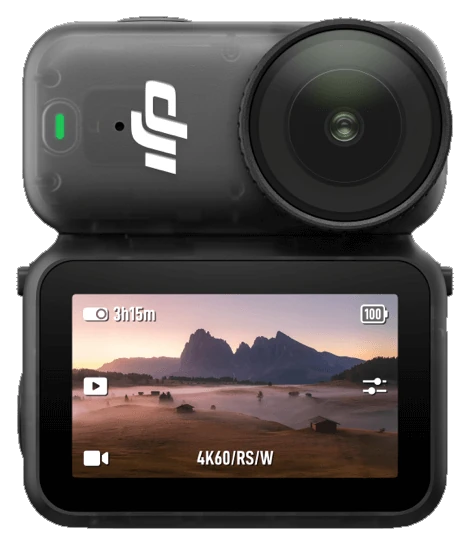

	Osmo Nano	✅	✅	–	Fixed 1× lens, so zoom controls are hidden.

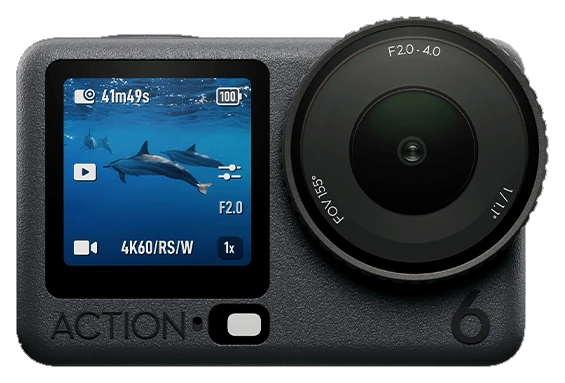

	Osmo Action 6	🧪	🧪	–	Built from a capture of the camera, not yet checked on one. Adds an APERTURE control.

✅ works on iOS and Android · 🧪 built, not yet verified on the camera · – not on this camera. Other Osmo models can appear in Bluetooth scan; other Action models and 360 live view are not captured yet.

[!WARNING] Camera control is reverse-engineered and can be incomplete. Check that recording starts and stops on the camera body until you trust the link.

Features

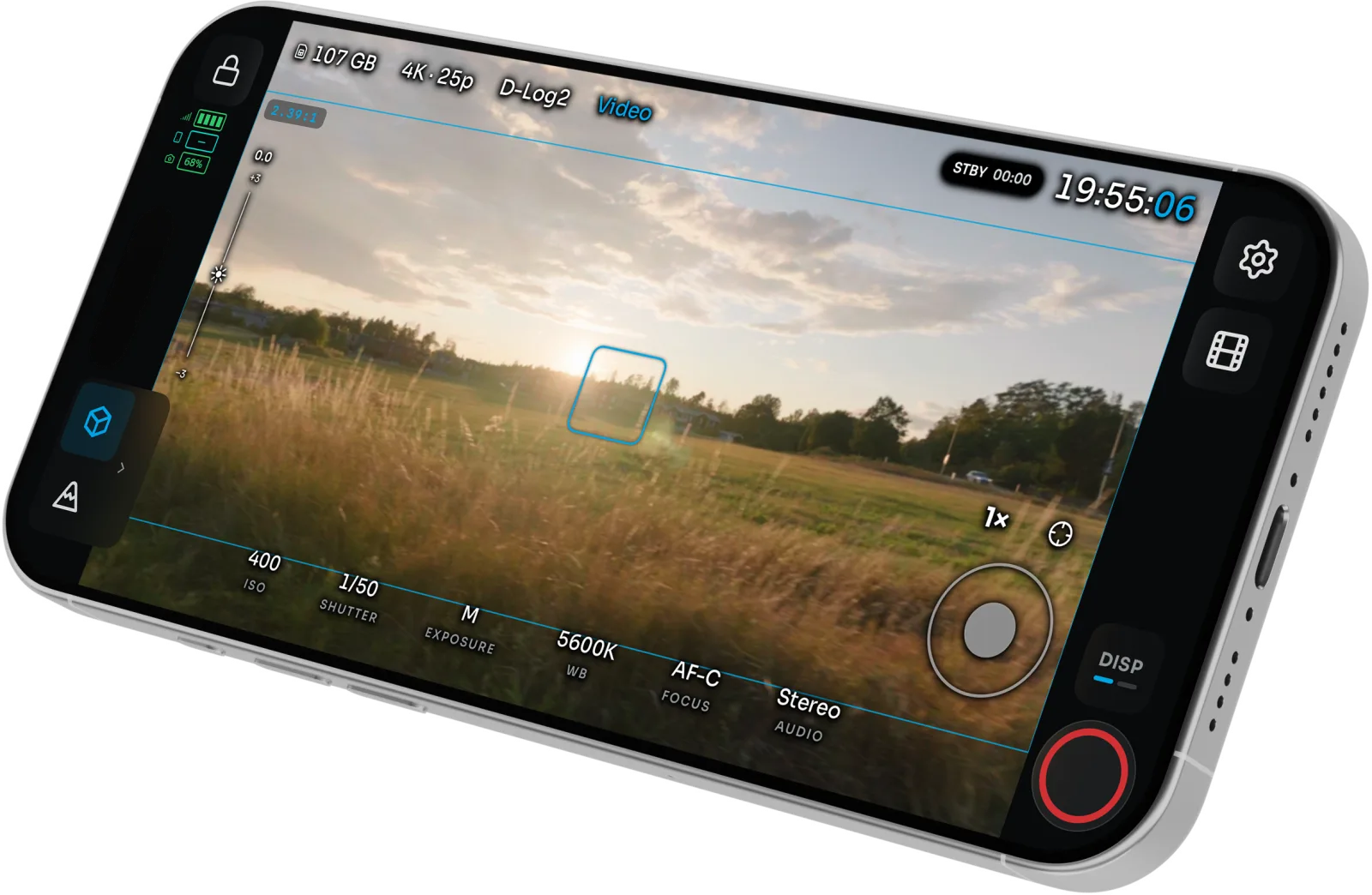

• Read the image like a colorist. Waveform, RGB parade, histogram and vectorscope run live beside the picture you are judging. Drag and resize them anywhere.
• Catch exposure and focus before the take. False color (CineStop scene stops, Video, IRE and Limits), zebras, Traffic Lights, focus peaking, an EV meter, ND suggestions and LEVEL roll and tilt meters.
• Frame once for every delivery. Grids, aspect guides and a center crosshair, in landscape and portrait.
• Run the camera from the phone. Record, ISO, shutter, white balance, EV, zoom and FORMAT. Tap a face on the feed to start the camera's subject tracking.
• Fly the gimbal. On-screen stick or a game controller, Direction Lock, Double-tap Level, and experimental Motion Control moves.
• Watch several cameras. Experimental Multiview puts up to four Osmo cameras on one screen, with per-camera looks and group recording.
• Review before striking the set. Browse clips and stills on the camera, star the keepers, delete bad takes, and play back with the same scopes and assists as live view.
• Ship it with the look baked in. Built-in or custom .cube LUTs, Convert log on export, native share, and optional Frame.io upload with your own Adobe app keys.

iPhone and iPad are the daily driver. Android has the monitor, assists, camera and gimbal control, Multiview and playback. iOS only today: LUT bake and Convert log on export, Frame.io upload, feed sharing to other devices, Apple Watch, AirPods head tracking, and per-camera Wi-Fi and Hotspot setups.

See it in action

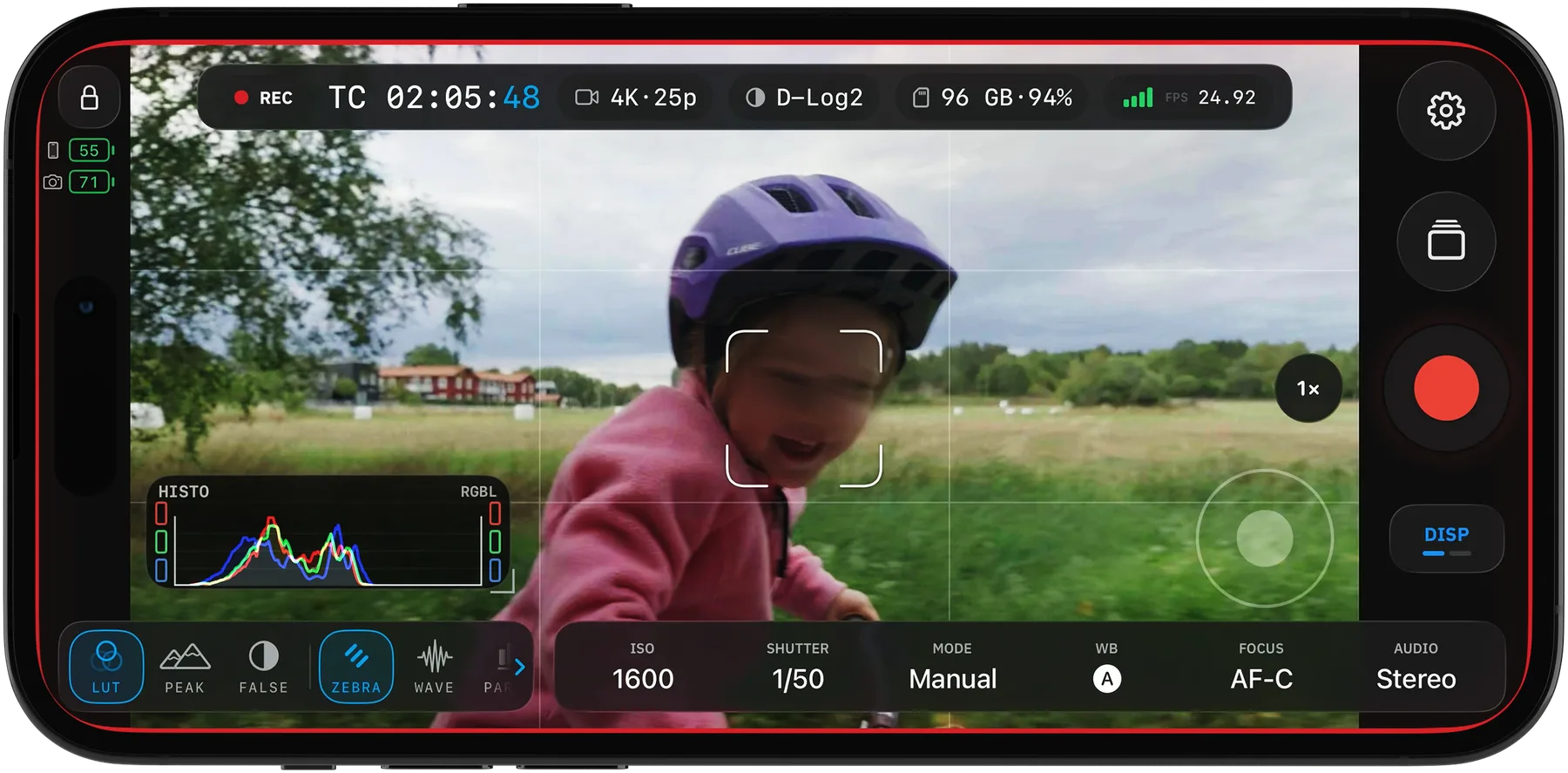

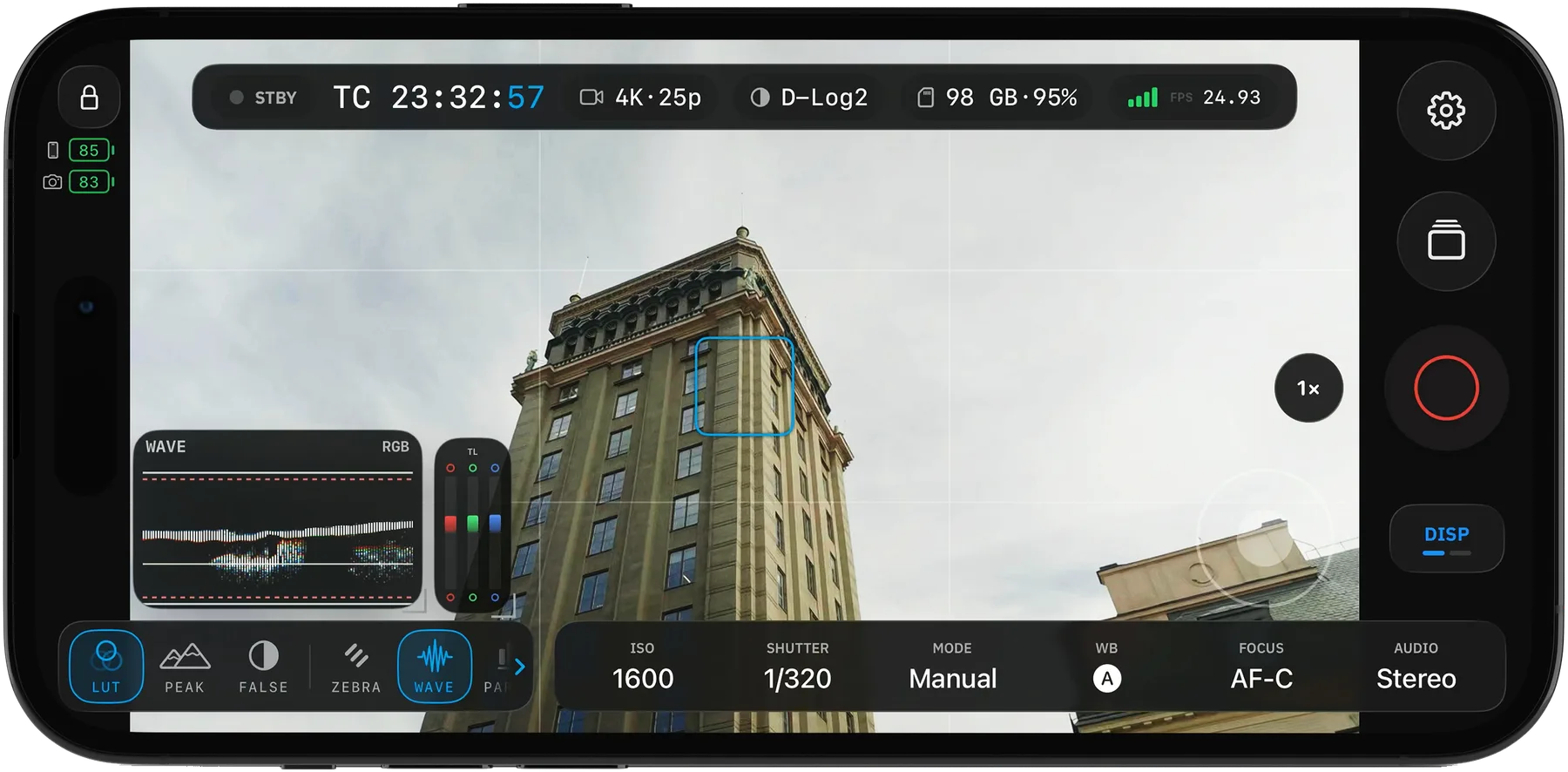

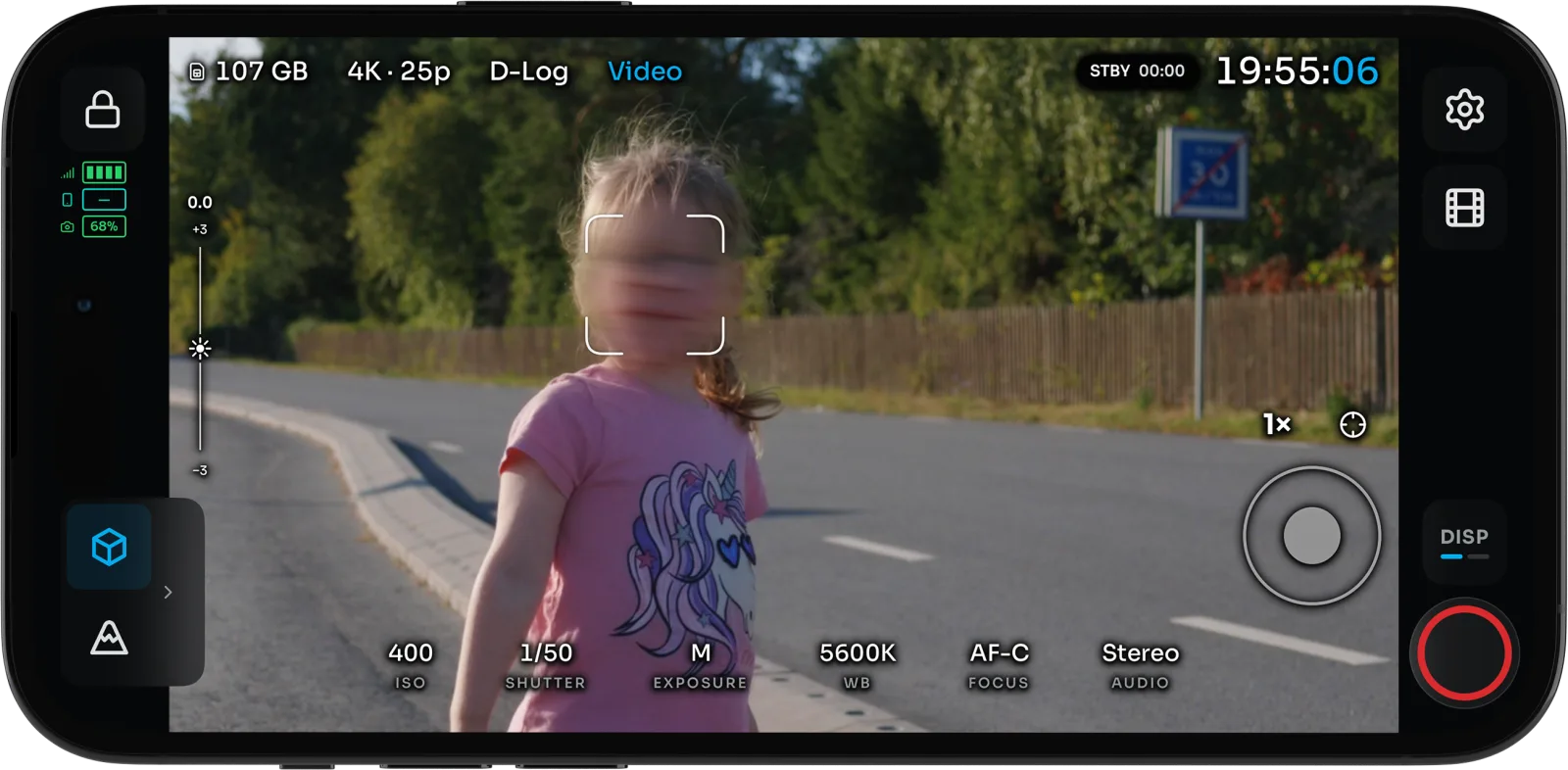

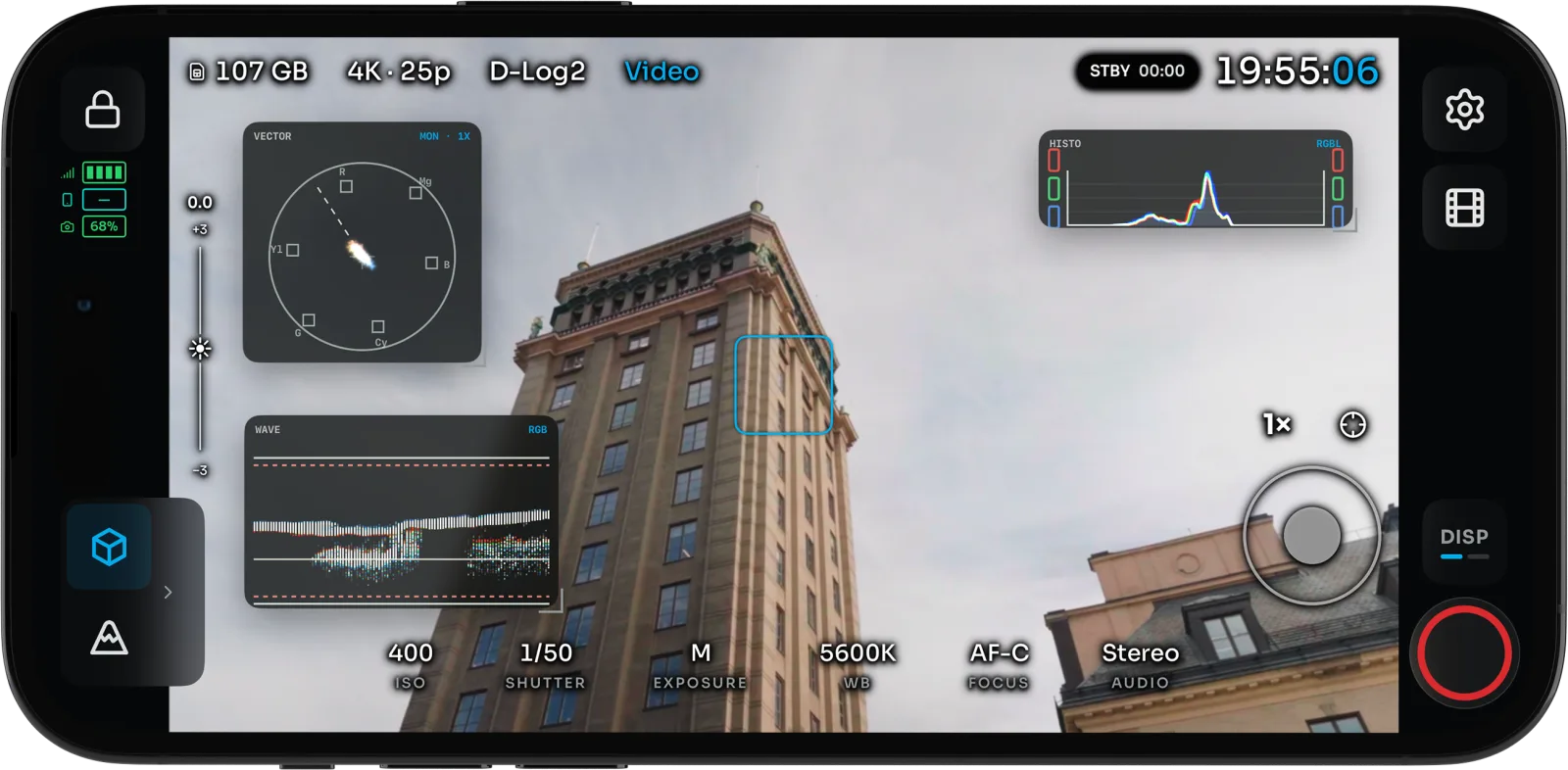

Face lock. Tap a face on the feed to start the camera's subject tracking, with histogram, zebras and a LUT still on.	Scopes. Waveform, RGB parade, histogram and vectorscope beside the image, with Traffic Lights on the feed.

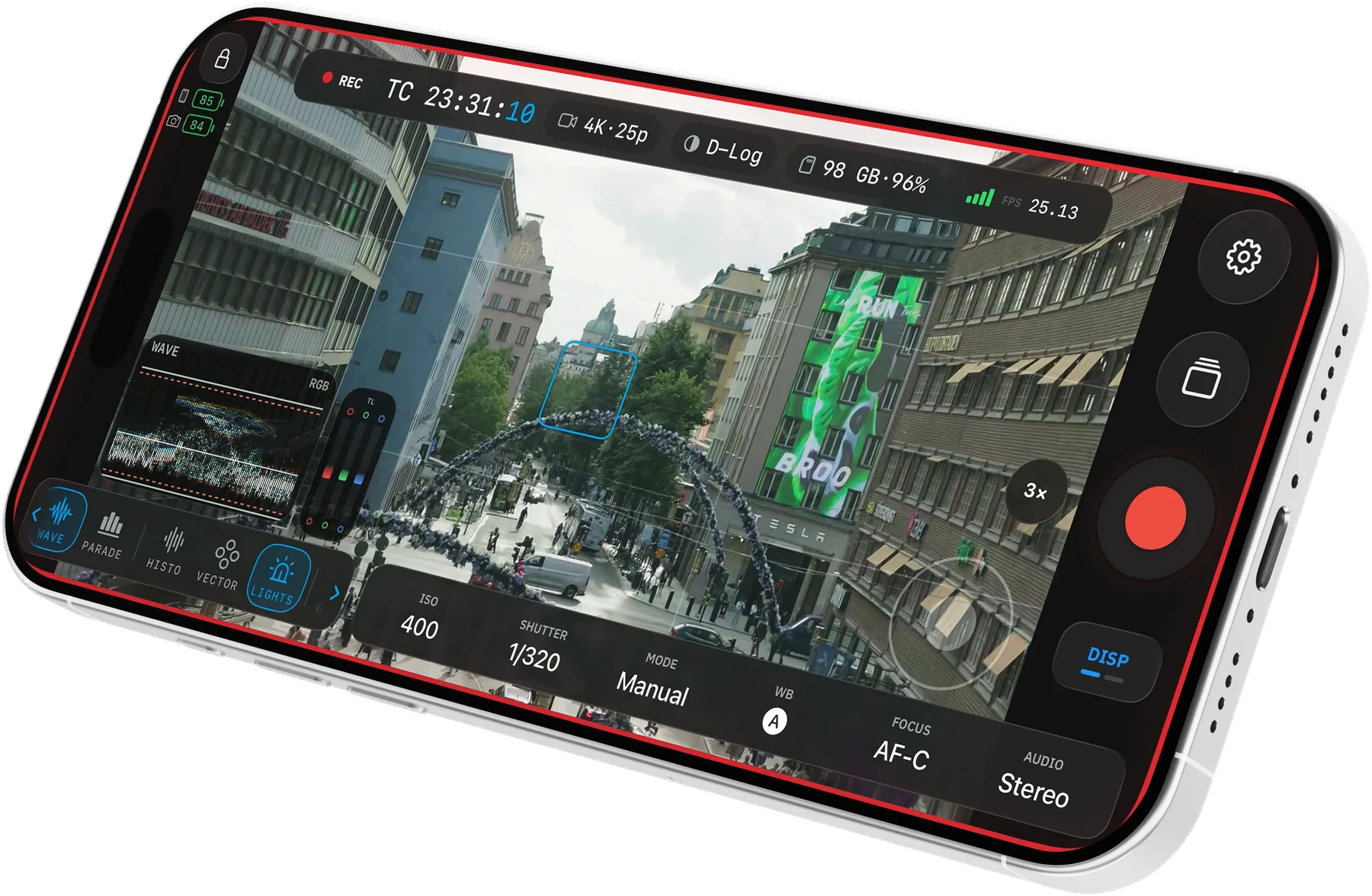

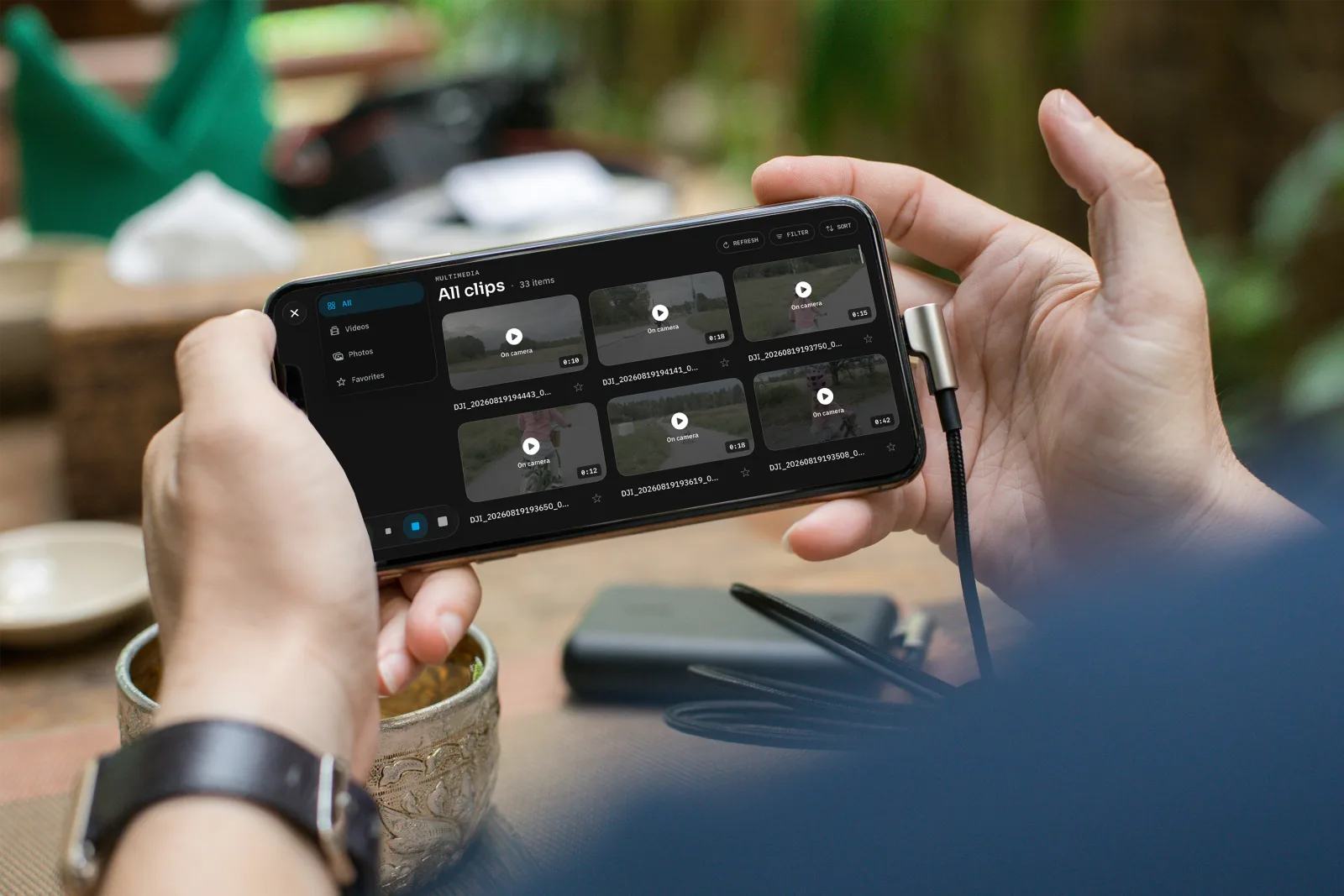

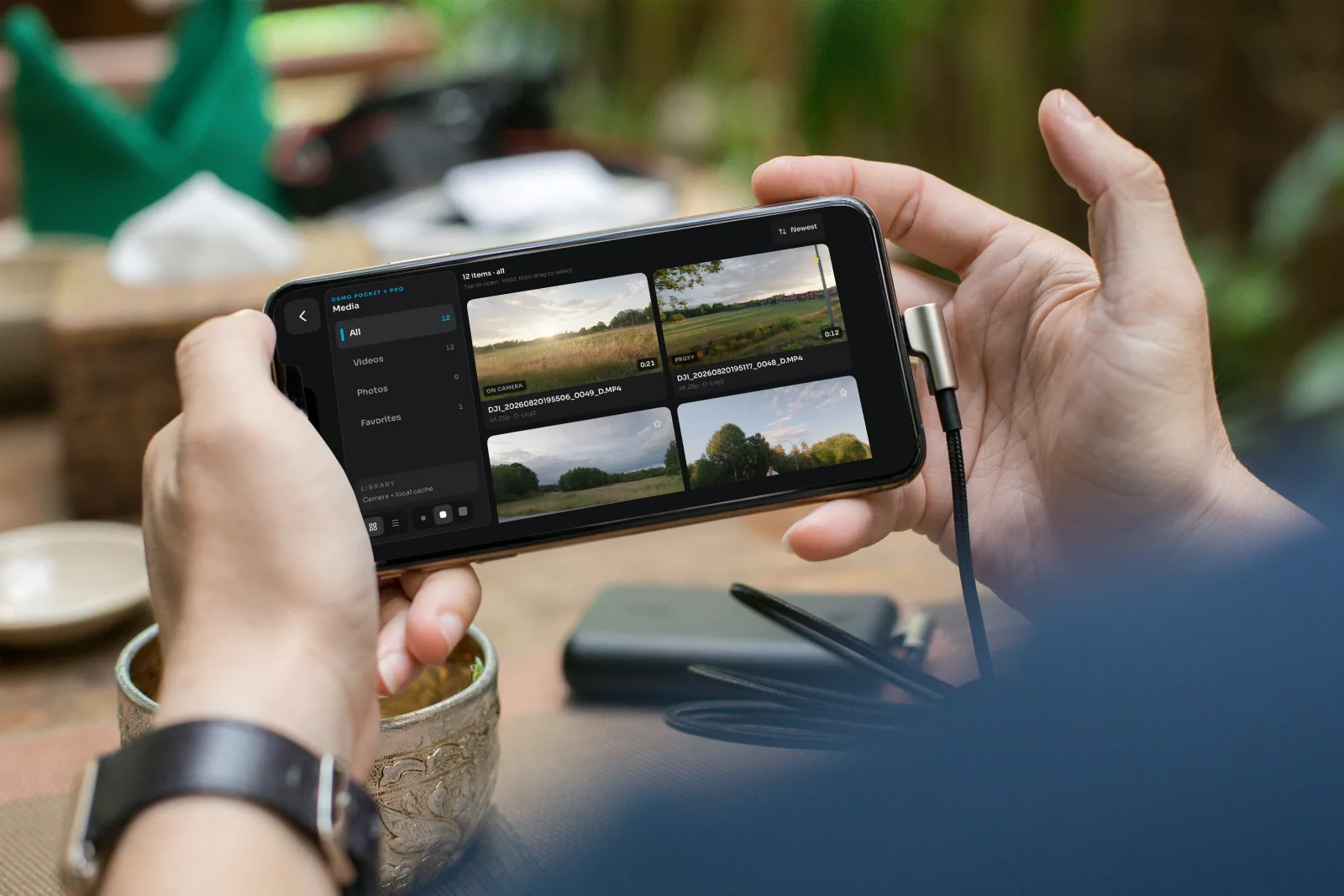

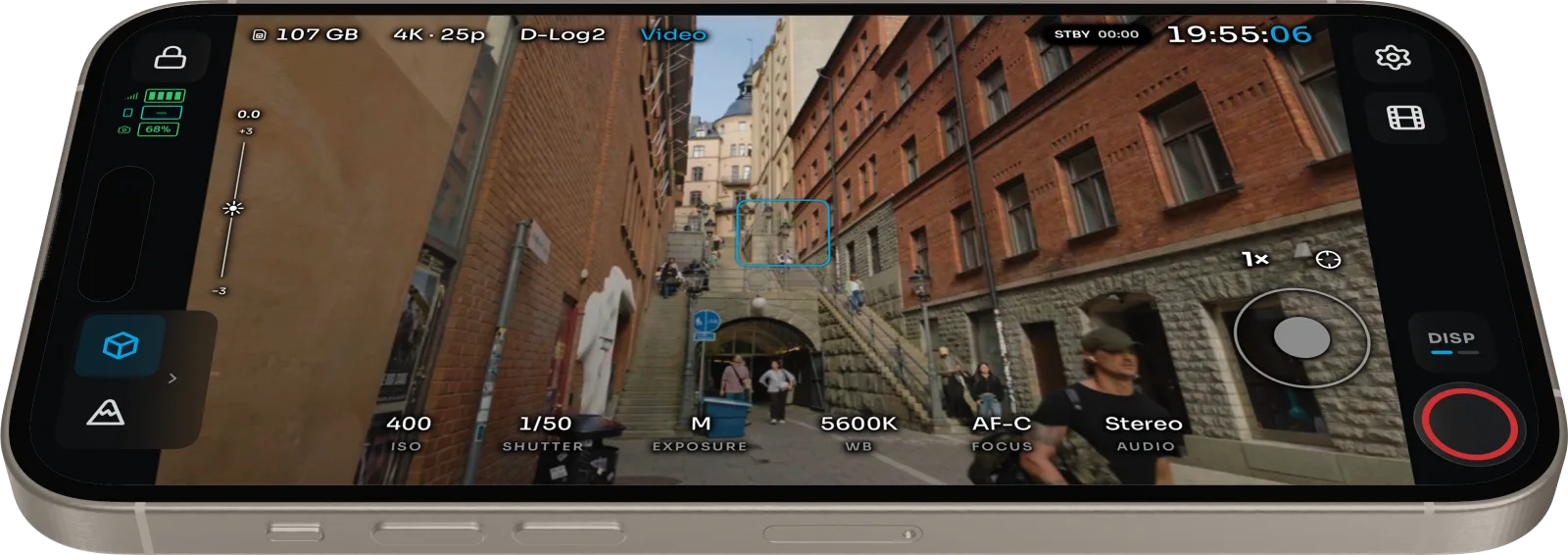

Camera control. Record, ISO, EV and zoom, plus the gimbal from an on-screen stick, a game controller or AirPods.	Media library. Browse clips and stills on the camera. Star the keepers and delete bad takes before you pack up.

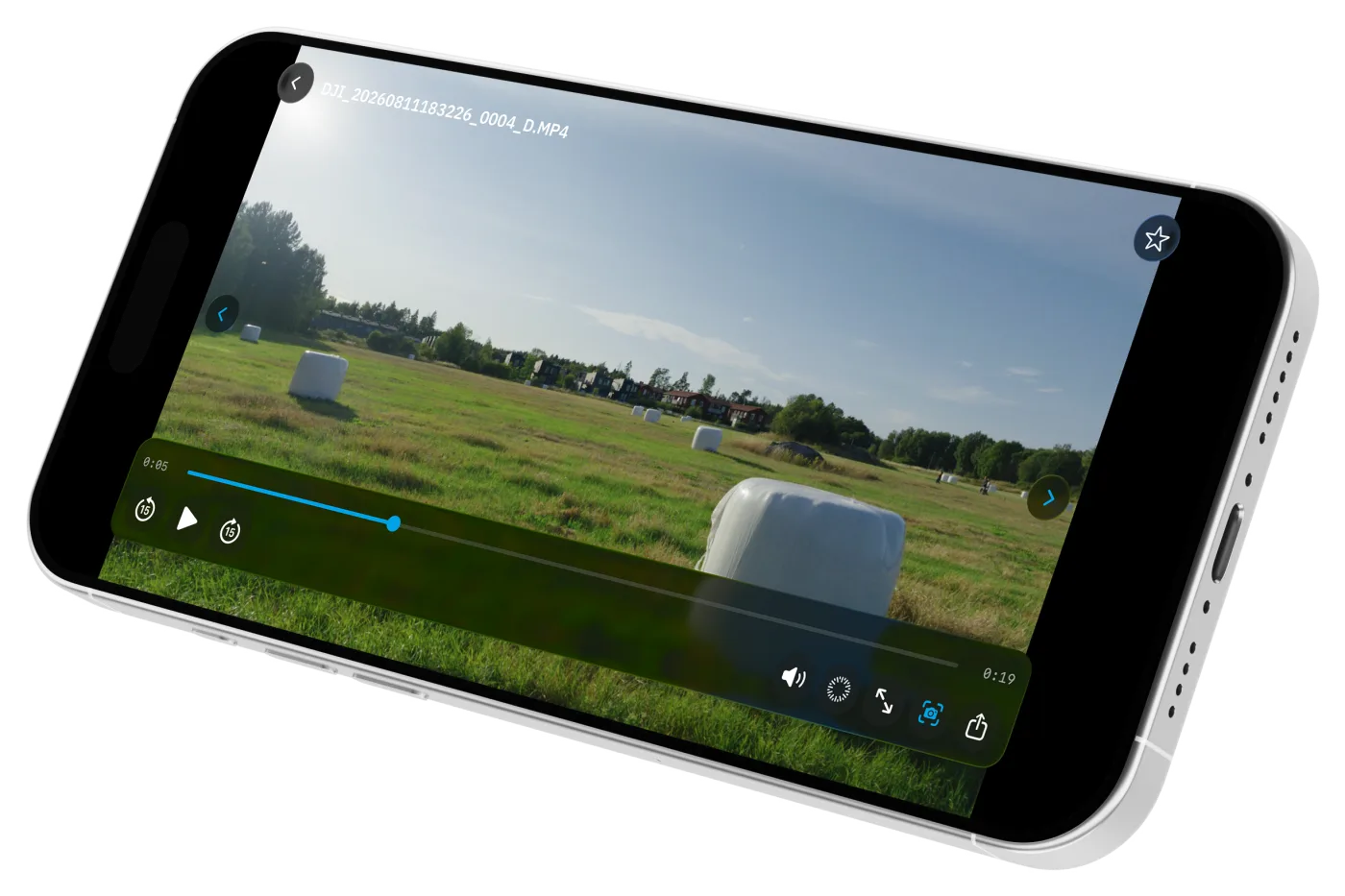

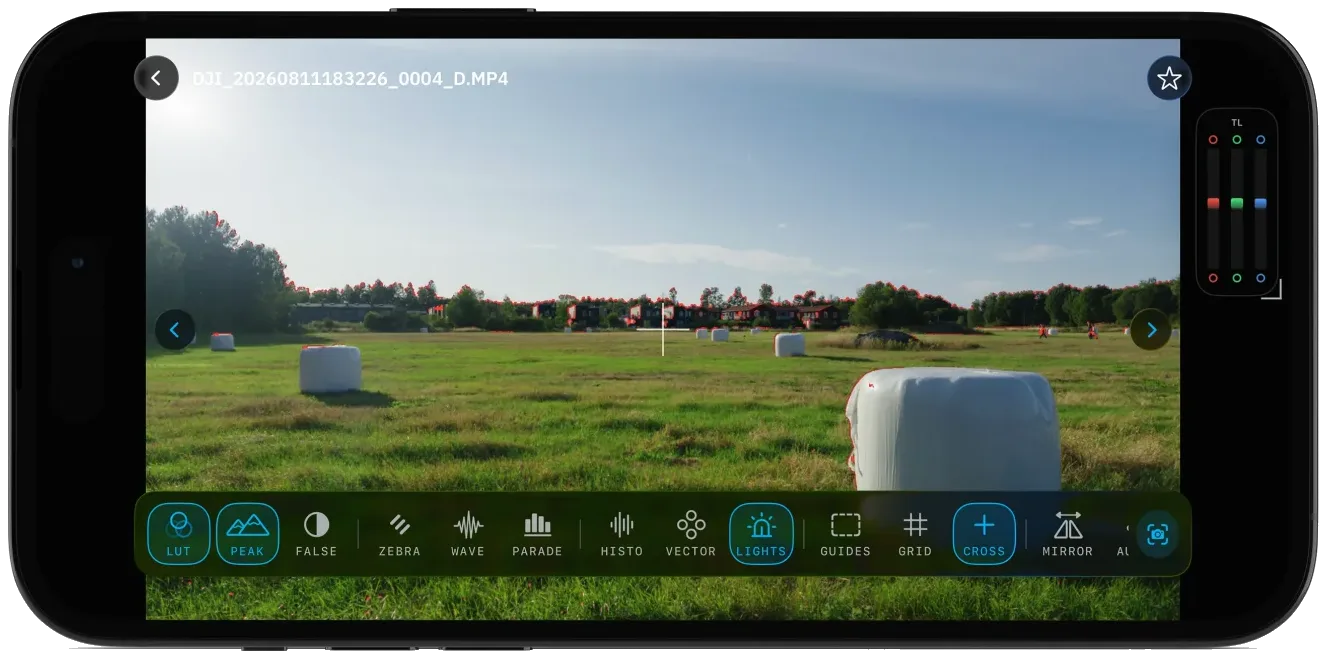

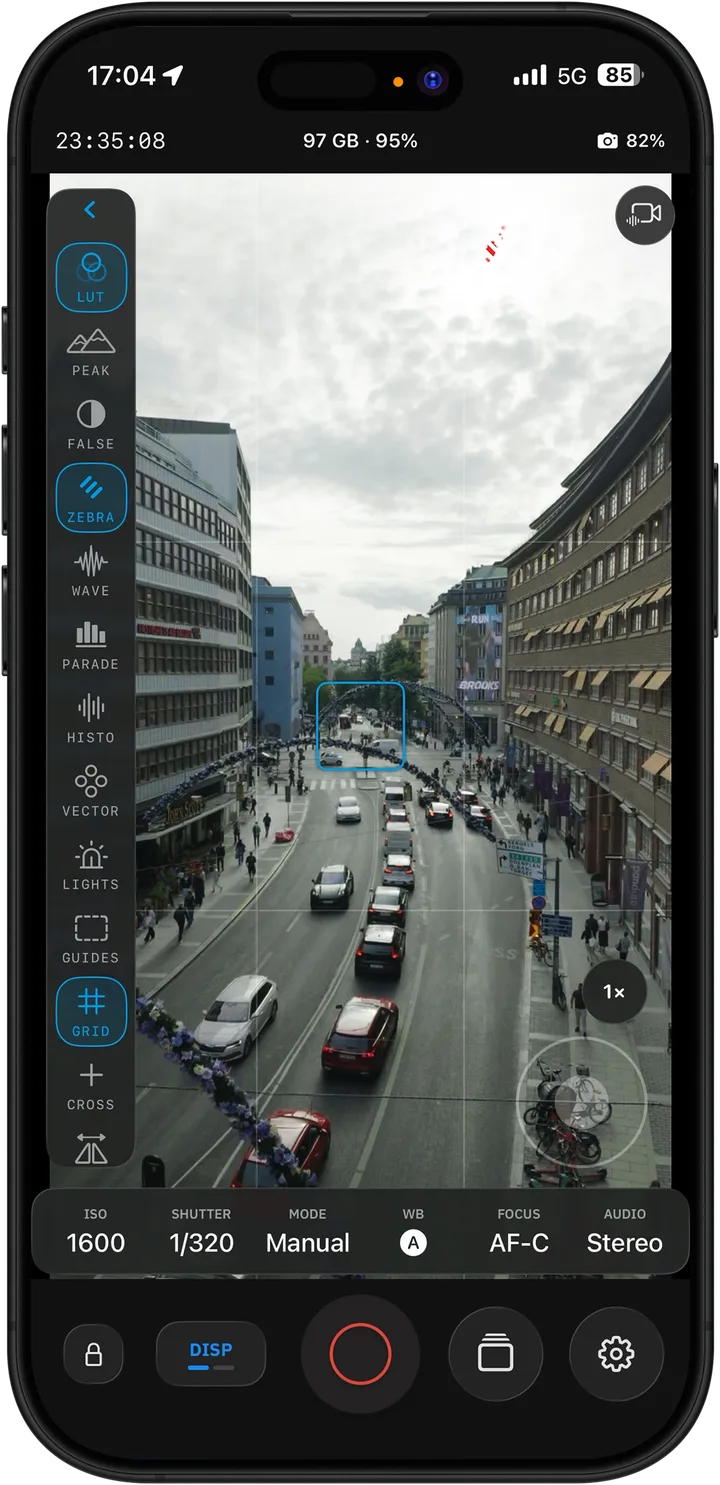

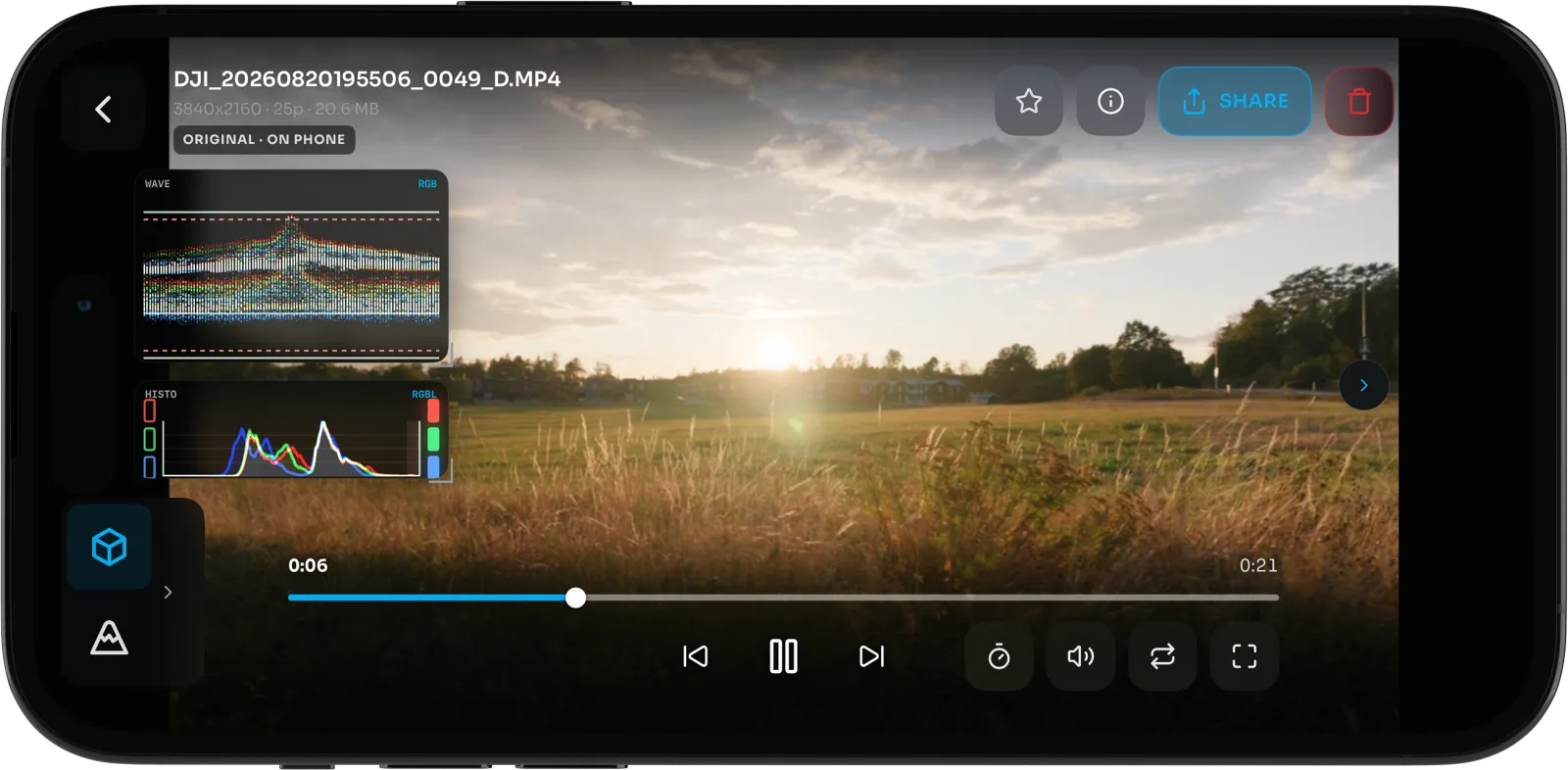

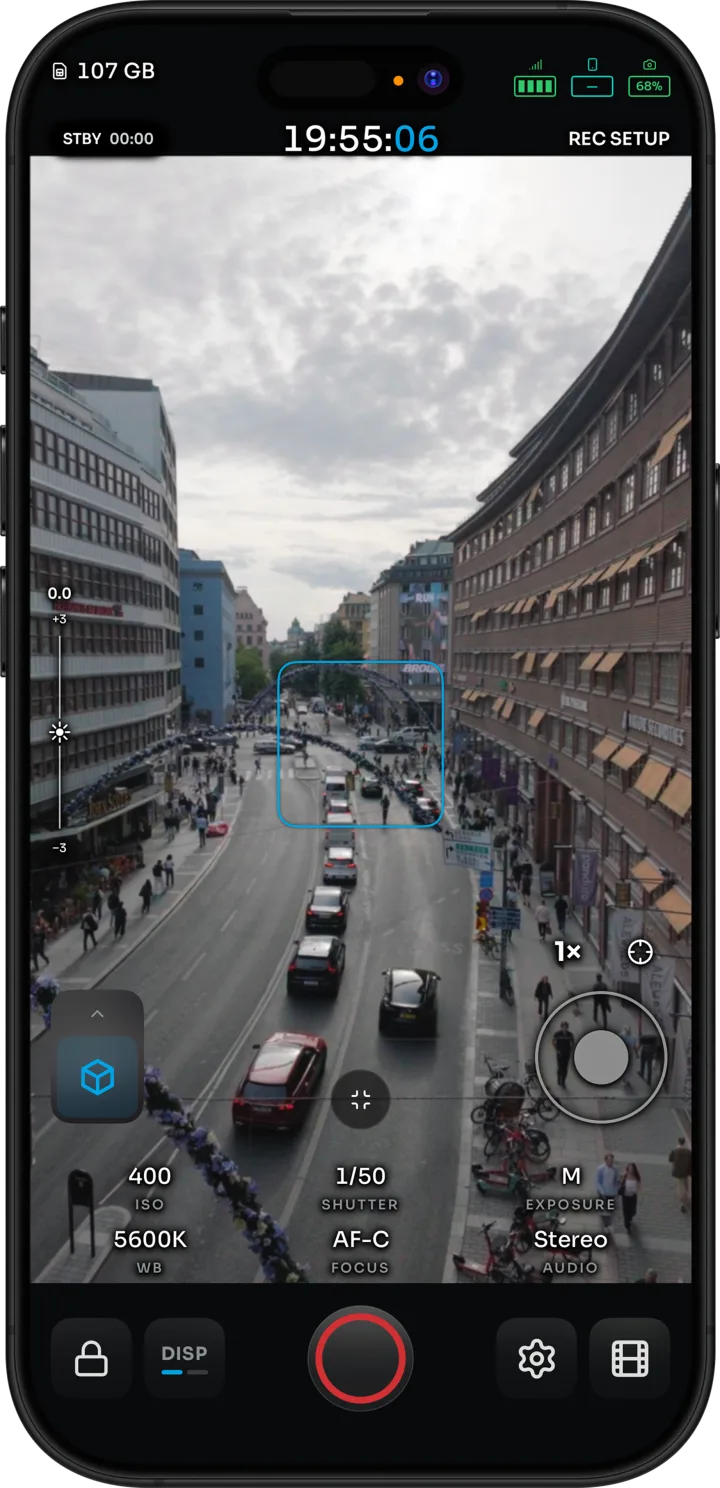

Playback. The same scopes and assists as live view, high-frame-rate clips at conform speed, and export with a baked LUT.	Vertical. The full assist rail works in portrait too.

Install

Platform	How	Notes
iPhone and iPad	Join the TestFlight	One universal app.
Android	Public beta on Google Play	Android 10 or newer, arm64.
Android without Play	Sideload APK (0.1.5 (6))	For field monitors and devices without the Play Store.

[!NOTE] A sideload APK and a Google Play install are signed differently and cannot update each other. Remove the Play or APK-mirror copy before installing the APK.

Pairing and live view need a real camera nearby. See the iOS and Android guides and the latest release notes.

In the press

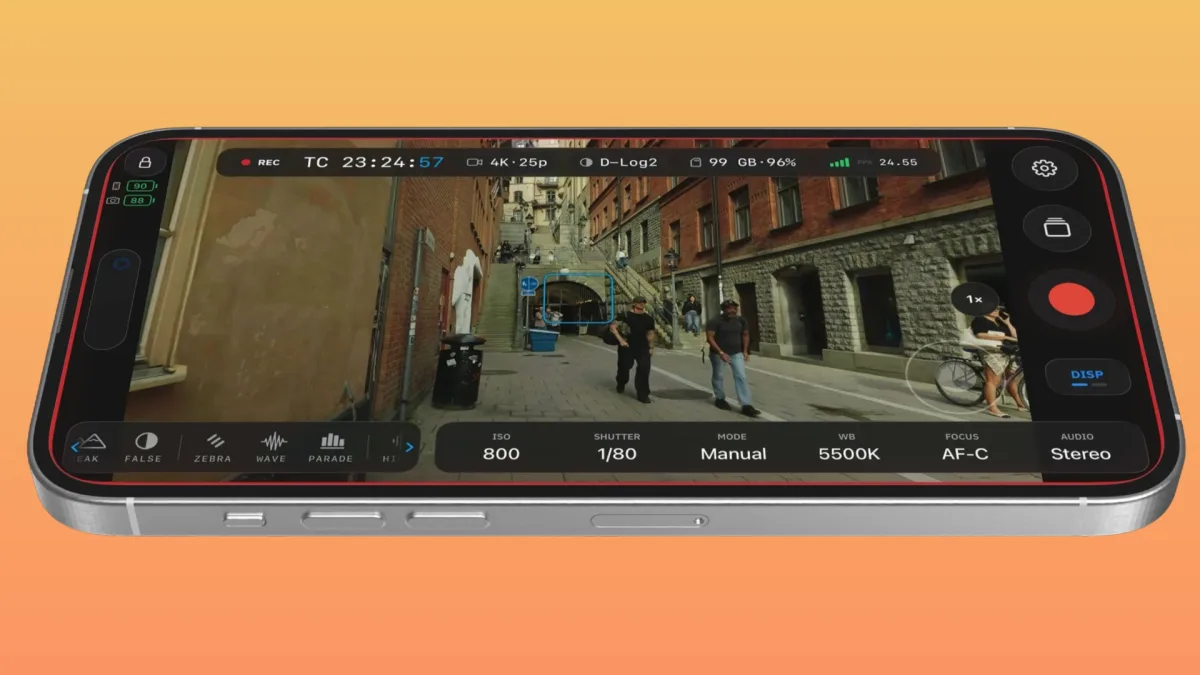

CineD Free open-source field monitor app brings waveforms, false color, and LUTs to DJI Osmo cameras

Colden Raisher OpenPocketCine review: free pro monitor app for DJI Pocket 4P

Blue Field Studios Finally! Pocket 4P Cinema Features

Also covered by Newsshooter, Gadget Pilipinas and Mark Exploring New Stuff.

Roadmap

The roadmap lives in GitHub Discussions. Browse the Ideas category to vote, add production context, or propose what to tackle next. Roadmap threads describe direction, not promised dates. Engineering-phase detail lives in docs/ROADMAP.md.

Free. Open source. Yours

No subscriptions, no paywalls, no advertising, and no tracking. Crash reports are opt-in. OpenPocketCine is Apache-2.0 licensed and built in public with the latest frontier models (Grok, Codex and Claude), so filmmakers and developers can inspect, improve and adapt the tool they rely on. Engineering guidelines live in AGENTS.md.

For developers

Built with

Architecture

A shared Swift business and protocol core with native platform shells:

Layer	Path	Purpose
Shared core	Sources/OpenPocketViewCore/	DUML framing, datalink, BLE adverts, commands, status
iOS app	ios/OpenPocketCine/	SwiftUI shell, CoreBluetooth, Hotspot Configuration, VideoToolbox
Android app	Apps/Android/app/	Jetpack Compose phone shell and Android platform adapters
Android facade	Sources/OpenPocketCineAndroidFacade/	Swift session and JNI boundary for Android
Tests	Tests/OpenPocketViewCoreTests/	Swift package tests: framing, transport, discovery, layout

The shared core owns protocol logic and stays portable (no SwiftUI, UIKit or Android dependencies). Platform shells own sockets, permissions, lifecycle, rendering and UI. See docs/ARCHITECTURE.md.

Build from source

Tooling runs through just:

just setup          # install meta-check tools (macOS / Homebrew)
just                # list all recipes
just check          # run repository quality checks
just test           # run Swift package tests
just native-check   # run Swift tests and build the native iOS app
just android-check  # build, test, and lint Android
just handbook       # docs at http://127.0.0.1:4321/

The iOS Xcode project is generated:

cd ios && xcodegen generate && open OpenPocketCine.xcodeproj

[!TIP] The Simulator and emulators have no Bluetooth or camera Wi-Fi. Pairing and live view need a physical iPhone or Android phone and a camera.

Releases: TestFlight archives come from Xcode Cloud (docs/testflight-ci.md). Play closed testing and the sideload APK are in docs/android-play-ci.md.

Documentation

• Docs: protocol, iOS and Android apps, and how to build. Keep them current in the same PR (standard).
• docs/ARCHITECTURE.md: shared Swift core and platform shells
• docs/PARITY.md: operator-visible iOS / Android contract
• docs/PERFORMANCE.md: live-path SLOs (frame rate, ACK, HUD)
• docs/UX.md: FTUE, operator copy, help, failure states
• docs/RELEASE.md: main + PRs + v* tags (no Git Flow)
• AGENTS.md: always-loaded index for coding agents

OpenPocketCine went through an extended private R&D phase before publication; the public repository starts from a squashed initial commit rather than carrying the experimental history.

Contributing

Contributions are welcome.

• Read CONTRIBUTING.md for the development workflow, code standards, and how to report bugs vs. request features.
• Bugs go in GitHub's bug-report form. Never put camera Wi-Fi passwords or captures in an issue.
• Ideas and questions go in GitHub Discussions: Ideas and Q&A.
• Please read the CODE_OF_CONDUCT.md. For security issues, see SECURITY.md.

Support

I truly appreciate everyone who uses this project, files an issue, or sends a patch. Optional Buy Me a Coffee contributions help keep the lights on. If you would rather give to a charity, especially one that helps animals, that is just as welcome.

Credits

I learned the BLE pairing and camera Wi-Fi connection path with the help of Osmosis by Konrad Iturbe, a generous open Android client for Osmo cameras. I'm grateful. OpenPocketCine is its own implementation; Osmosis was inspiration for that connection story, not a source I copied. If you care about talking to Osmo cameras, Konrad's work is worth your time.

License

Apache 2.0. Third-party licenses are listed in THIRD-PARTY-NOTICES.md. The app's privacy policy lives at opencapture.org/openpocketcine/privacy.

This project is not affiliated with or endorsed by SZ DJI Technology Co., Ltd. No DJI SDK or proprietary documentation is included in, distributed with, or required by this project. "DJI", "Osmo", "Osmo Pocket", "Osmo Action", "Osmo Nano", and "Mimo" are trademarks of SZ DJI Technology Co., Ltd., used here for identification only.
