NOOP

Your strap. Your data. Your machine. Local-first, no cloud.

♥ Support · ⬇ Download · Features · Protocol · Contact

NOOP is free, forever — no account, no cloud, no subscription, every feature unlocked, no nag. That doesn't change.

But here's the honest reality, up front: NOOP is built and maintained by one person, out of pocket. Reverse-engineering WHOOP's hardware — and keeping up as its firmware changes — takes real time and real test hardware. The project continues if the people who use it help fund it. If that doesn't happen, it can't. No drama, no guilt — just the maths of an unfunded project.

If NOOP saves you a subscription, or you just want WHOOP 5.0/MG support finished and the work to keep going, chipping in is what genuinely decides that. It's optional, one-off, and tied to nothing about your data or access — there's no server and no record of who has or hasn't.

How to donate — 2 minutes, even if you've never touched crypto

Donations are crypto-only, on purpose: staying anonymous (for the project and for you) rules out PayPal, Patreon, or anything with a name attached. If you don't already hold any:

Install a mainstream exchange app — Coinbase, Binance, Kraken, or Cash App (Cash App handles Bitcoin directly).
Buy a small amount of Bitcoin (BTC) or Ethereum (ETH) — even $5–10 is genuinely helpful.
Tap Send / Withdraw, paste the matching address below, and send. That's it. (Only ever send a coin to its own network.)

Coin	Network	Address
BTC	Bitcoin	`bc1qn2gkl7wslwpws06mvazjn2uu689zlkv7kg3kf5`
ETH	Ethereum	`0xd64D508b531c4b1297Ca4023C774e0E97aA67B7F`
ADA	Cardano	`addr1qxsju3y0mlke2h6h2g6qgnq4r3jstngtyjxs0nnp5zrv28zv8p5rgzruxyjz33j9k23pffta8z639e2snjdd4vcetfqsn4vwr3`
XRP	XRP Ledger	`rpvijHi2nVY9WWAJhojsAX5tJmHdmLtFhq`

Each address also has a scan-to-donate QR code in the app under Support (and they're listed in docs/DONATIONS.md). Always copy the full address and double-check the first and last characters; crypto transactions are irreversible, and only ever send a coin to its own network.

Can't or would rather not? Also genuinely valued: ⭐ star this repo, file a good bug report, share a strap log, test on hardware you own, or just tell another WHOOP user. That moves NOOP forward too.

Download

Pre-built apps you can run right now:

Platform	Build	Notes
macOS	`NOOP.app` (see Releases)	Apple Silicon + Intel. Drag to Applications. Not notarized — see First launch on macOS below.
Android	`NOOP-full.apk` (see Releases)	The full app. `minSdk 26` (Android 8+). Sideload — enable "install unknown apps".
Android (demo)	`NOOP-demo.apk`	Preloaded with sample data so you can explore every screen with no strap. Installs alongside the full app.
iOS	Build from source — see PR #42	An experimental community port (app + widgets + HealthKit). Not distributed as a download: iOS has no anonymous install path — the App Store and TestFlight both require a real Apple Developer identity — so it's build-it-yourself in Xcode, not officially maintained.

First launch on macOS. NOOP is not notarized by Apple — notarization needs a paid Apple Developer ID tied to a real identity, which doesn't fit an anonymous, free project. The app is sandboxed and ad-hoc code-signed, and the full source is here to inspect. Because it isn't notarized, macOS Gatekeeper blocks it on first open (you may see "damaged" or "unverified developer" — that's the download quarantine flag, not real damage). To open it, do one of these once:

Terminal (most reliable): drag NOOP.app to Applications, then run xattr -dr com.apple.quarantine /Applications/NOOP.app and open NOOP normally.

No Terminal: double-click NOOP (it'll be blocked), then open System Settings → Privacy & Security, scroll to the bottom, and click "Open Anyway" next to NOOP. (On macOS 14 and earlier you can also right-click the app → Open.)

Prefer to avoid this entirely? Build from source — see Quickstart.

Prefer to build it yourself? See docs/BUILD.md.

Everything runs offline. The only feature that ever uses the network is the optional AI Coach, and only with your own API key.

NOOP is a standalone, fully offline companion app for WHOOP straps (4.0 and 5.0). It pairs directly with the strap over Bluetooth, stores everything on your own device in SQLite, imports your existing WHOOP and Apple Health history, and computes recovery, strain, HRV, and sleep locally, with no WHOOP account and no WHOOP cloud.

It is built on prior community reverse-engineering work and exists for one reason: to let someone who owns a WHOOP strap read their own biometric data from their own device, on a machine they control.

Not affiliated with WHOOP. NOOP is an independent, unofficial interoperability project. It is not affiliated with, endorsed by, or connected to WHOOP, Inc. "WHOOP" is used only to identify the hardware NOOP talks to. Use it only with a device you own, and not in breach of any agreement that applies to you. NOOP is not a medical device; every derived metric is an approximation, not clinical data. See DISCLAIMER.md.

Why NOOP

You bought the strap. The biometric stream it produces is yours. NOOP is built on that premise:

Own your data. NOOP reads heart rate, R-R intervals, SpO₂, skin temperature, respiration, accelerometer/gravity, battery, and event data straight off the strap over Bluetooth and writes it to a local SQLite database. Nothing is uploaded anywhere.
Account-free and local. NOOP never logs into a WHOOP account and never hits a WHOOP server. It does not bypass any login, paywall, or DRM; it simply talks to a device you own and reads data you generated.
Bring your history. Already have years of data in the official app or in Apple Health? Import the WHOOP CSV export and/or your Apple Health export.xml once, and it's permanently on your machine.
Transparent math. Recovery, strain, HRV, and sleep are recomputed on-device from documented, citable methods (Task Force 1996 HRV, Karvonen %HRR, Edwards / Banister TRIMP, Tanaka HRmax, and so on). The algorithms are approximations of — not reproductions of — any proprietary model, and every analyzer file documents exactly what it does.

Features

The macOS reference app organizes everything behind a single sidebar (Strand/App/RootView.swift). Each item below is a real screen in Strand/Screens/.

Screen	What it does

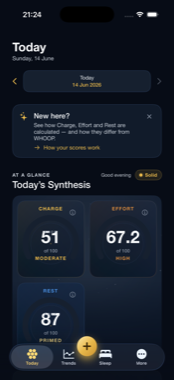

Today (Control Center)	Home dashboard: recovery ring, a "today's synthesis" insight, a grid of stat tiles (recovery, strain, sleep, HRV, RHR, SpO₂, respiratory, steps, weight, calories) each with a 14-day sparkline, recent workouts, and a data-sources footer.
Readiness	An on-device "should you push today?" read that synthesizes established sports-science signals from your own history — HRV vs your baseline (Plews/Buchheit), resting-HR drift (Lamberts), sleeping respiratory-rate drift, training-load balance (acute:chronic workload ratio, Gabbett) and training monotony (Foster) — into a single headline (Primed / Balanced / Strained / Run down) with the drivers behind it. Pure local math, not medical advice.
Live	Real-time view of the connected strap — heart rate and frame stream as they arrive (~1 Hz).
Breathe	HRV haptic breathing biofeedback. The strap both measures HRV (R-R intervals) and buzzes its haptic motor, so NOOP paces your breath with felt cues (one buzz inhale, two exhale) and shows live HR + rolling RMSSD responding as the session deepens. Presets: Relax 4-6, Coherence 5.5, Box 4-4.
Intervals	Silent haptic HIIT timer. The strap buzzes every transition (triple-buzz into WORK, single into REST, 3-2-1 tick at phase ends, long buzz on finish) so you train hands-free. Falls back to a glanceable visual timer with no strap.
Explore (Metric Explorer)	Interrogate any single metric over time, built from the metric catalog (`Strand/Data/MetricCatalog.swift`).
Compare	Plot two metrics together / against each other over a shared timeline.
Insights	Behavioral and correlational insights derived from your own series.

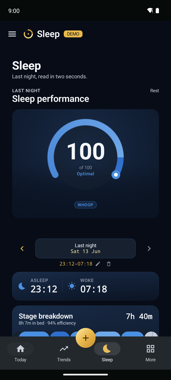

Sleep	Sleep sessions with a hypnogram, stage breakdown, efficiency, resting HR, and HRV — computed by the on-device sleep stager.
Trends	Long-range trends across recovery, strain, sleep, and biometrics.
Workouts	Detected exercise sessions with strain and heart-rate detail.
Health	Biometric overview (HR, HRV, SpO₂, skin temperature, respiratory rate, etc.).

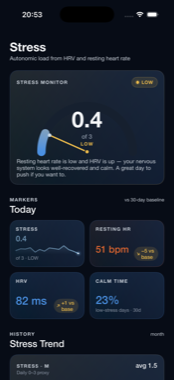

Stress	Day-level stress / autonomic load visualization.
Apple Health	Browse and reconcile data imported from your Apple Health export.
Data Sources	One-tap import of a WHOOP CSV export or an Apple Health export, plus live-strap status. "Bring your history in once, then it's yours."
Notifications	Configure local notifications and thresholds (`Strand/Data/NotificationSettingsStore.swift`).
Automations	Turn the strap's physical inputs and live biometrics into Mac actions — all on-device (see below).
Coach	An optional AI Coach you can ask about your data in plain language. It's the one feature that ever uses the network: off until you add your own OpenAI/Anthropic key, and it sends only a short text summary of recent metrics plus your question — never raw streams or identifiers. On the sandboxed macOS build it's blocked by the App Sandbox (no network entitlement); it works on Android. See `docs/PRIVACY_SECURITY.md`.
Settings	Profile, preferences, the in-app What's new changelog, and an opt-in Experimental section (WHOOP 5/MG protocol probes).
Support	Attribution + optional crypto donations. The whole app works without them.

There is also a menu-bar extra (Strand/MenuBar/MenuBarContent.swift) with a glanceable live HR readout and a compact popover, a first-run onboarding wizard that sets expectations (independent/experimental, WHOOP 4.0 vs 5/MG, on-device only), and an in-app "What's new" changelog shown after each update.

Automations (on-device)

Strand/Screens/AutomationsView.swift + Strand/System/MacActions.swift:

Double-tap → Mac action. Double-tap the strap to lock the Mac, buzz back to confirm, mark a moment, do nothing, or run any macOS Shortcut by name (via the shortcuts:// URL scheme, so it's sandbox-friendly).
Wear & presence. Lock the Mac (or run a Shortcut) the moment the strap leaves your wrist; run a Shortcut when it goes back on. (macOS reserves true auto-unlock for Apple Watch — NOOP can lock, not unlock.)
Haptic coaching. HR-zone coaching and an experimental resting-stress nudge — the strap buzzes so you don't have to watch a screen.
Smart alarm. Arms the strap's own firmware alarm to buzz at your wake time (still fires if the Mac is asleep or NOOP is closed), with an optional light-sleep wake window when the Mac stays awake and connected.

Platform status

NOOP's logic lives in cross-platform Swift packages, and the same protocol, storage, analytics, and scoring is ported to Kotlin on Android. Both apps pair with the strap and score recovery, strain and sleep on your own device — no import required.

Platform	Status
macOS	✅ Full app (`Strand/`, SwiftUI, macOS 13+). Pairs over BLE, offloads the strap's history, and scores recovery / strain / sleep on-device. The complete feature set above runs here.
Android	✅ Full app (`android/`, Jetpack Compose, Android 8+). Pairs over BLE, persists and scores on-device, and imports WHOOP / Apple Health / Health Connect. Grab the APK from Releases.
iOS	🧪 Experimental community port in PR #42 — app target + widgets + Live Activity + HealthKit, builds for the iOS simulator. Build-from-source only, not officially maintained or distributed: iOS has no anonymous distribution path (App Store and TestFlight both require a real Apple Developer identity), which is fundamentally at odds with this project staying anonymous. The shared packages already declare `.iOS(.v16)` and UI-framework code is guarded with `#if canImport(UIKit)` / `AppKit`.

Strap support

NOOP is an independent, experimental project — capable, but a work in progress.

Strap	Status
WHOOP 4.0	✅ The tested, supported path. Live HR, recovery, strain, sleep, history offload — the full experience.
WHOOP 5.0 / MG	🧪 Live heart rate works (confirmed on real hardware). Pick "WHOOP 5.0 / MG" before connecting — and see the pairing note below, because you can't just scan for it. Deeper 5/MG metrics (recovery, strain, sleep) are still being reverse-engineered; there's an opt-in Settings → Experimental toggle for 5/MG owners who want to help map the protocol.

Pairing a WHOOP 5.0 / MG — read this first

A WHOOP strap holds an encrypted Bluetooth bond with only one device at a time, and yours is normally bonded to the official WHOOP app on your phone. You can't just scan for it in NOOP — if the strap is still bonded to the WHOOP app, NOOP's pairing is refused and the strap log shows "Encryption is insufficient" / "bond refused." (Live heart rate is the exception — it rides the standard Bluetooth heart-rate profile, so it streams without a bond. But pairing — needed for the deeper features — does not.)

To pair properly:

Close the official WHOOP app on your phone (fully quit it, or turn that phone's Bluetooth off) so it isn't holding the bond.

Put the strap in pairing mode — on a 5.0/MG, tap the band repeatedly (firm taps on the sensor) until the LEDs flash blue.

In NOOP: Live → choose "WHOOP 5.0 / MG" → Scan & Connect. Success looks like "CLIENT_HELLO acked — link established" in the strap log (not "bond refused"). It can take a couple of attempts.

Only one device at a time. Because the strap holds a single bond, don't leave it connected to your phone and your Mac (or the WHOOP app) at once — live heart rate will still show on all of them (that rides the bond-free standard profile), but none of them will have the real encrypted bond. If HR streams fine yet buzz, alarm, double-tap and history don't work, that's the tell: the strap isn't truly bonded to this device. Free it from everything else, then pair here.

Bonding to NOOP may take the strap's bond away from the WHOOP app, so the official app might need to re-pair afterwards. This is the hardest part of 5/MG support — if it refuses, you're almost certainly still bonded to the WHOOP app (or another device); free the strap and retry.

The app always tells you what's live now versus still building, both in onboarding and on each screen.

What to expect when you start

NOOP computes your scores on your own device, so like any recovery wearable it needs a little data before everything fills in:

Live heart rate shows the moment the strap connects.
Strain and sleep appear after you've worn it and synced — the strap's last ~14 days offload automatically over the first few minutes.
Recovery needs a few nights for the app to learn your personal baseline, then sharpens each night. WHOOP makes you wait for the same reason.
In a hurry? Import your WHOOP export in Data Sources and your full history fills in about a minute.

Architecture

The repository is split into platform-pure Swift packages plus a macOS app target. All packages declare both .iOS(.v16) and .macOS(.v13); framework-specific UI is guarded with #if canImport(UIKit) / #if canImport(AppKit).

Strand/                  macOS SwiftUI reference app (this is what you build)
Packages/
  WhoopProtocol/         BLE frame parsing, CRC, command/event/packet decode
  WhoopStore/            GRDB/SQLite persistence (migrations, streams, caches)
  StrandAnalytics/       HRV / recovery / strain / sleep / correlation math
  StrandImport/          WHOOP CSV + Apple Health importers
  StrandDesign/          SwiftUI design system (palette, components, charts)
Tools/Backfill/          CLI tool for backfilling decoded data
Fixtures/                sample WHOOP export for tests

`WhoopProtocol` — the reverse-engineering core

Platform-pure (no CoreBluetooth import) so it runs in tests and CLI tools unchanged. It decodes the on-wire frame format for both strap generations:

public enum DeviceFamily: String, Sendable, CaseIterable {
    case whoop4   // CRC8 (poly 0x07) header check; service 61080001-…
    case whoop5   // CRC16-Modbus header check, "puffin" packet types; service fd4b0001-…
}

Decoding is schema-driven (Resources/whoop_protocol.json) and includes CRC8, CRC16-Modbus, and zlib CRC-32 implementations, frame framing, value interpretation, and historical-stream reassembly. The app layer (Strand/BLE/, Strand/Collect/) wraps these UUID strings in CBUUID and handles bonding, offload, and live notifications.

`WhoopStore` — local SQLite via GRDB

Everything is stored on-device in SQLite (using GRDB.swift). The schema is a versioned migrator (Database.swift, currently through v9). Examples of decoded-stream tables created in v1–v3:

CREATE TABLE hrSample      (deviceId TEXT, ts INTEGER, bpm INTEGER, PRIMARY KEY(deviceId, ts));
CREATE TABLE rrInterval    (deviceId TEXT, ts INTEGER, rrMs INTEGER, PRIMARY KEY(deviceId, ts, rrMs));
CREATE TABLE spo2Sample    (deviceId TEXT, ts INTEGER, red INTEGER, ir INTEGER, PRIMARY KEY(deviceId, ts));
CREATE TABLE skinTempSample(deviceId TEXT, ts INTEGER, raw INTEGER, PRIMARY KEY(deviceId, ts));
CREATE TABLE respSample    (deviceId TEXT, ts INTEGER, raw INTEGER, PRIMARY KEY(deviceId, ts));

Later migrations add server-derived metric caches (sleepSession, dailyMetric), cursors, a raw frame outbox, and more.

`StrandAnalytics` — transparent, on-device math

Pure, database-free analyzers. Each is documented and grounded in published methods (and is explicitly an approximation, not a reproduction of any proprietary model):

File	Computes
`HRVAnalyzer.swift`	RMSSD + SDNN from R-R intervals (Task Force 1996), with range + Malik ectopic filtering.
`RecoveryScorer.swift`	A 0–100 recovery score: HRV-dominant z-score + logistic composite vs personal baselines.
`StrainScorer.swift`	A 0–21 logarithmic strain scale from %HRR (Karvonen) and Edwards / Banister TRIMP.
`SleepStager.swift`	Sleep/wake detection + approximate 4-class staging from cardiorespiratory + gravity features.
`CorrelationEngine.swift`	Pearson r, OLS regression, day-aligned and lagged correlations between two series.
`WorkoutDetector.swift`, `Baselines.swift`, `BehaviorInsights.swift`, `AnalyticsEngine.swift`	Workout detection, rolling baselines, behavioral insights, and the per-day orchestrator.

`StrandImport` — bring your own history

WHOOP CSV export (WhoopExportImporter.swift): header-name-driven, tolerant parser for physiological_cycles.csv, sleeps.csv, workouts.csv, and journal_entries.csv, from a folder or .zip. The same schema covers WHOOP 4 / 5 / MG.
Apple Health export (AppleHealthImporter.swift): a streaming SAX parser (XMLParser) for export.xml (which can exceed 1 GB), with correlation-dedupe, unit normalization (e.g. SpO₂ fraction → %), and sleep-stage mapping.

`StrandDesign` — the SwiftUI design system

Palette, typography, motion, and reusable components/charts (RecoveryRing, StrainGauge, Hypnogram, Sparkline, TrendChart, YearHeatStrip, StrandCard, StatePill, …) — no external UI dependencies.

Quickstart (macOS)

Requirements: macOS 13+, Xcode 15+ (Swift 5.9), and a Mac with Bluetooth. To pair live, you need your own WHOOP strap; to just explore, you can import a CSV / Apple Health export instead.

The Xcode project is generated from project.yml with XcodeGen.

# 1. Clone
git clone <your-fork-url> NOOP
cd NOOP

# 2. (Re)generate the Xcode project from project.yml
brew install xcodegen   # if you don't have it
xcodegen generate

# 3. Open and run
open Strand.xcodeproj
# Select the "Strand" scheme → Run (⌘R). The built app is named NOOP.

Notes:

Bundle id com.noopapp.noop, product name NOOP, sandboxed with the Bluetooth and user-selected-files entitlements.
Swift Package Manager resolves the only third-party dependencies automatically: GRDB.swift (SQLite) and ZIPFoundation (export unzip).
Run the tests from Xcode (the StrandTests target + each package's test target), or per-package with swift test inside Packages/<Name>/.

To explore without an Xcode project, the packages build on their own:

cd Packages/WhoopProtocol && swift build && swift test

How your data flows

WHOOP strap ──BLE──▶ Strand/BLE + Strand/Collect ──▶ WhoopProtocol (decode)
                                                          │
WHOOP CSV  ─┐                                             ▼
Apple Health├─▶ StrandImport (parse) ───────────▶ WhoopStore (local SQLite)
 export.xml ─┘                                            │
                                                          ▼
                                            StrandAnalytics (recovery/strain/
                                            HRV/sleep, on-device)
                                                          │
                                                          ▼
                                          Strand (SwiftUI) + StrandDesign

Every arrow stays on your machine.

Privacy

Offline by design. NOOP has no server, no telemetry, and no account. Your strap data, imports, and computed metrics live in a local SQLite database on your device and never leave it.

Attribution

NOOP stands on community reverse-engineering and interoperability work. With thanks:

johnmiddleton12/my-whoop — the WHOOP 4.0 BLE protocol; the WhoopProtocol and WhoopStore packages and the collection logic are adapted from this work.
b-nnett/goose — the WHOOP 5.0 / MG BLE reverse-engineering (the fd4b0001-… service family, CRC16-Modbus header, and "puffin" packet types) that NOOP's WHOOP 5.0 path is ported from.
groue/GRDB.swift — SQLite persistence.
weichsel/ZIPFoundation — export unzipping.

NOOP contains no WHOOP proprietary code, firmware, logos, or assets, and performs no DRM circumvention. Full detail in ATTRIBUTION.md.

Support (optional)

NOOP is free and always will be, and never gates a feature behind payment. If it's useful to you and you want to help with the development and testing costs, optional crypto donation addresses are shown on the in-app Support screen and listed in docs/DONATIONS.md. Donations are 100% optional and the app never asks twice.

Contact: questions, feedback, and bug reports → thenoopapp@gmail.com

Disclaimer

NOOP is an independent, unofficial, non-commercial interoperability project. It is not affiliated with, endorsed by, or connected to WHOOP, Inc. All references to "WHOOP" are nominative — used only to identify the third-party hardware NOOP interoperates with.

NOOP is not a medical device. Heart rate, HRV, recovery, strain, sleep stages, SpO₂, respiratory rate, and skin temperature are approximations computed from published methods. They are not clinically validated and are not medical advice. Do not use them to diagnose, treat, or make health decisions — consult a qualified professional.

Provided as-is, with no warranty, for personal and educational use. You use it at your own risk. Read the full notice in DISCLAIMER.md.

License

NOOP is source-available under the PolyForm Noncommercial License 1.0.0: free for personal and other non-commercial use — read it, run it, fork it, and contribute. Commercial use is not granted by this license. (PolyForm Noncommercial is a proper software license with patent terms; it is deliberately not an OSI "open-source" licence, because that would permit the commercial use this project's non-commercial nature rules out.)

The license covers NOOP's own original code and docs. Protocol facts (frame layouts, command numbers, byte offsets) are uncopyrightable and free to reuse; bundled dependencies keep their own licenses (GRDB.swift and ZIPFoundation are MIT — see NOTICE). By opening a pull request you agree your contribution is licensed under the same terms — see docs/CONTRIBUTING.md.

Docs

CHANGELOG.md — release history and what to expect (also shown in-app under What's new).
DISCLAIMER.md — trademark, interoperability, and medical/legal notice.
ATTRIBUTION.md — full credits and licensing notes.
docs/DONATIONS.md — optional donation addresses (also in-app under Support).
project.yml — XcodeGen project definition (source of Strand.xcodeproj).
