Real-time glassmorphism rendering library for Android for Android XML Components
High-performance OpenGL ES 2.0 library delivering physically accurate glass refraction, blur, and chromatic aberration effects for Android UI components.

Overview

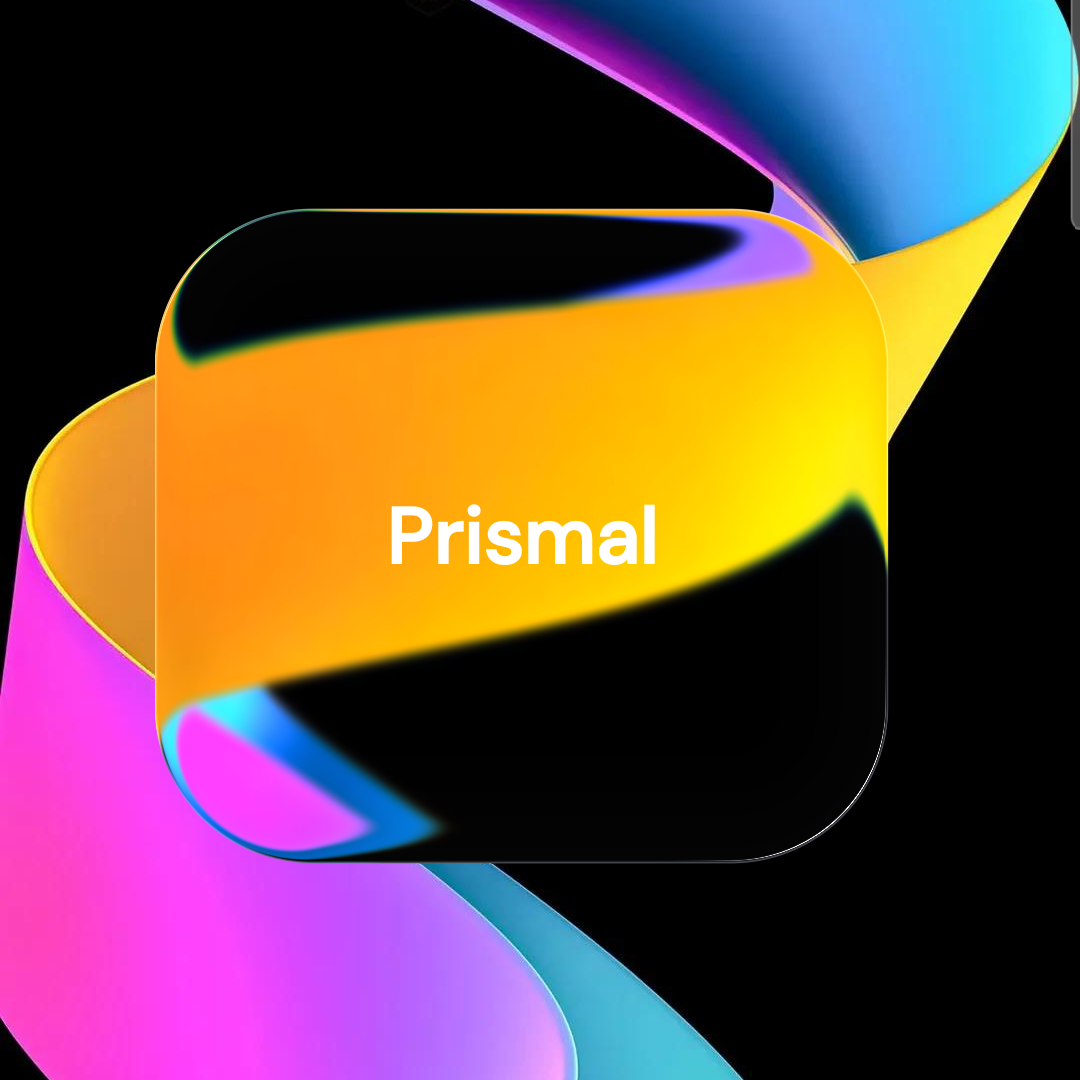

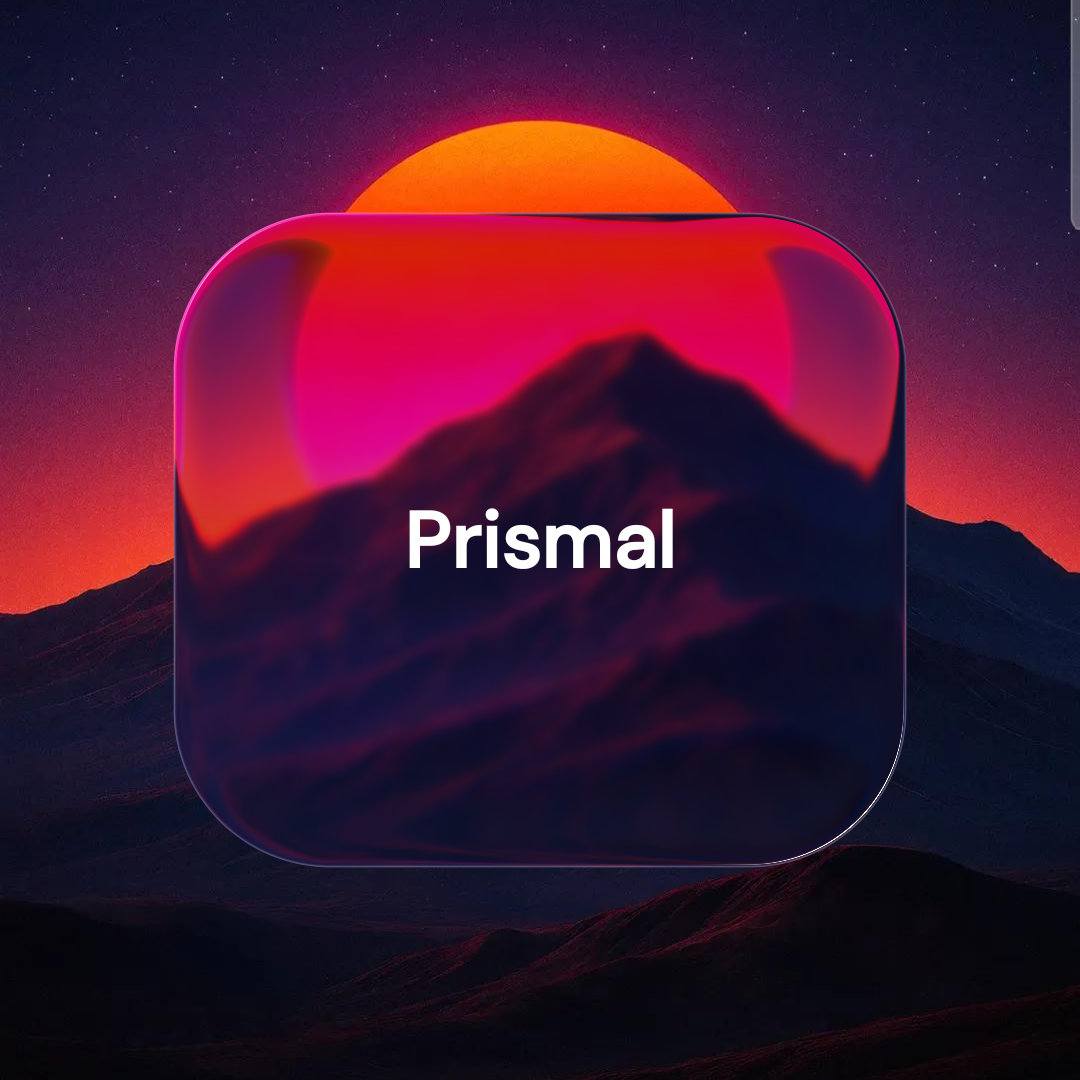

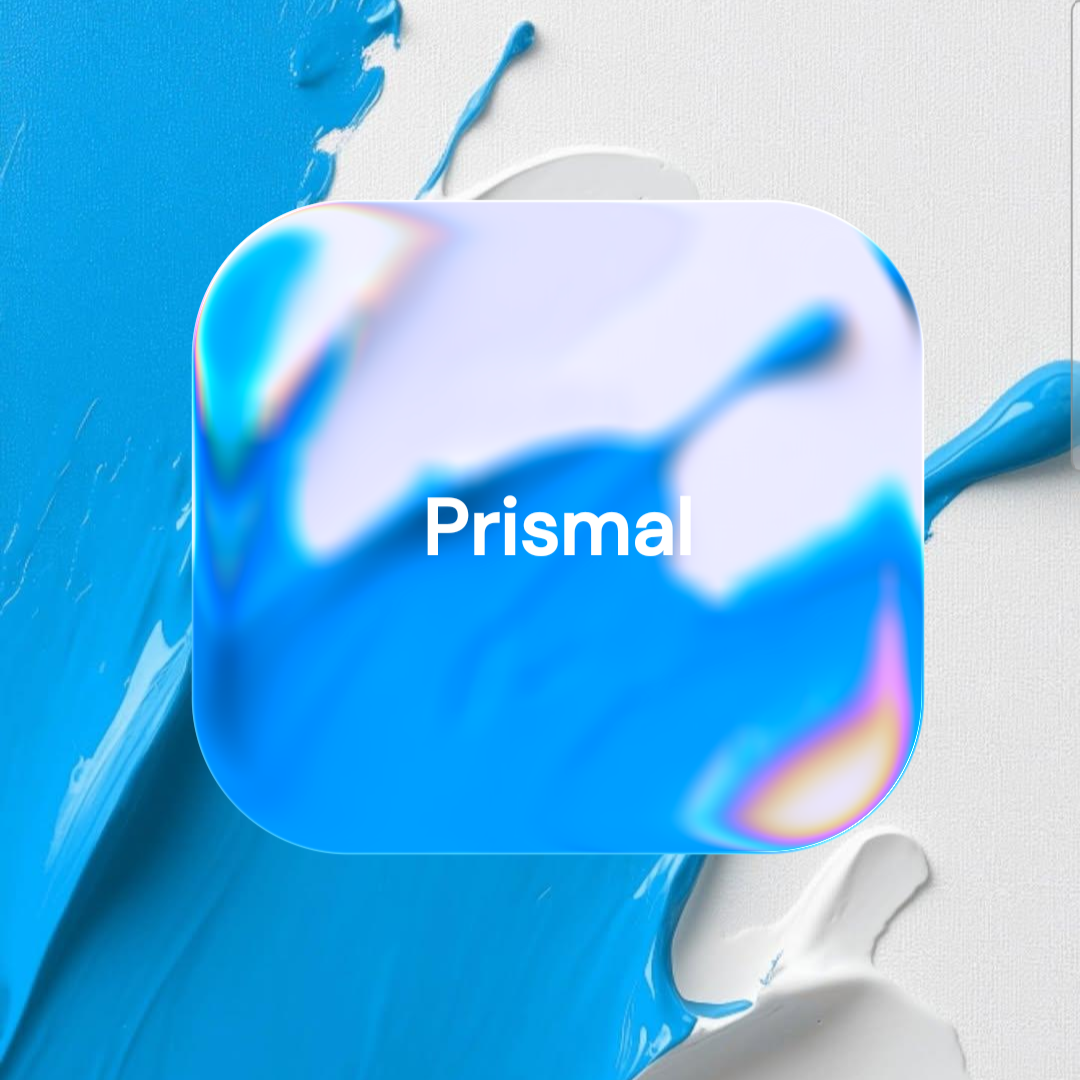

Prismal is an Android library that provides real-time glassmorphism effects through custom OpenGL ES 2.0 shaders. It captures content behind UI elements and applies optical distortions including refraction, blur, and chromatic aberration to simulate realistic glass materials.

Key Features

• Real-time Glass Rendering - GPU-accelerated shader-based effects with live background capture
• Physically Based Refraction - Accurate light bending using Index of Refraction (IOR), Fresnel effects, and double refraction
• Chromatic Aberration - Realistic RGB color separation at glass edges
• Interactive Components - Touch-responsive animations and dynamic distortions

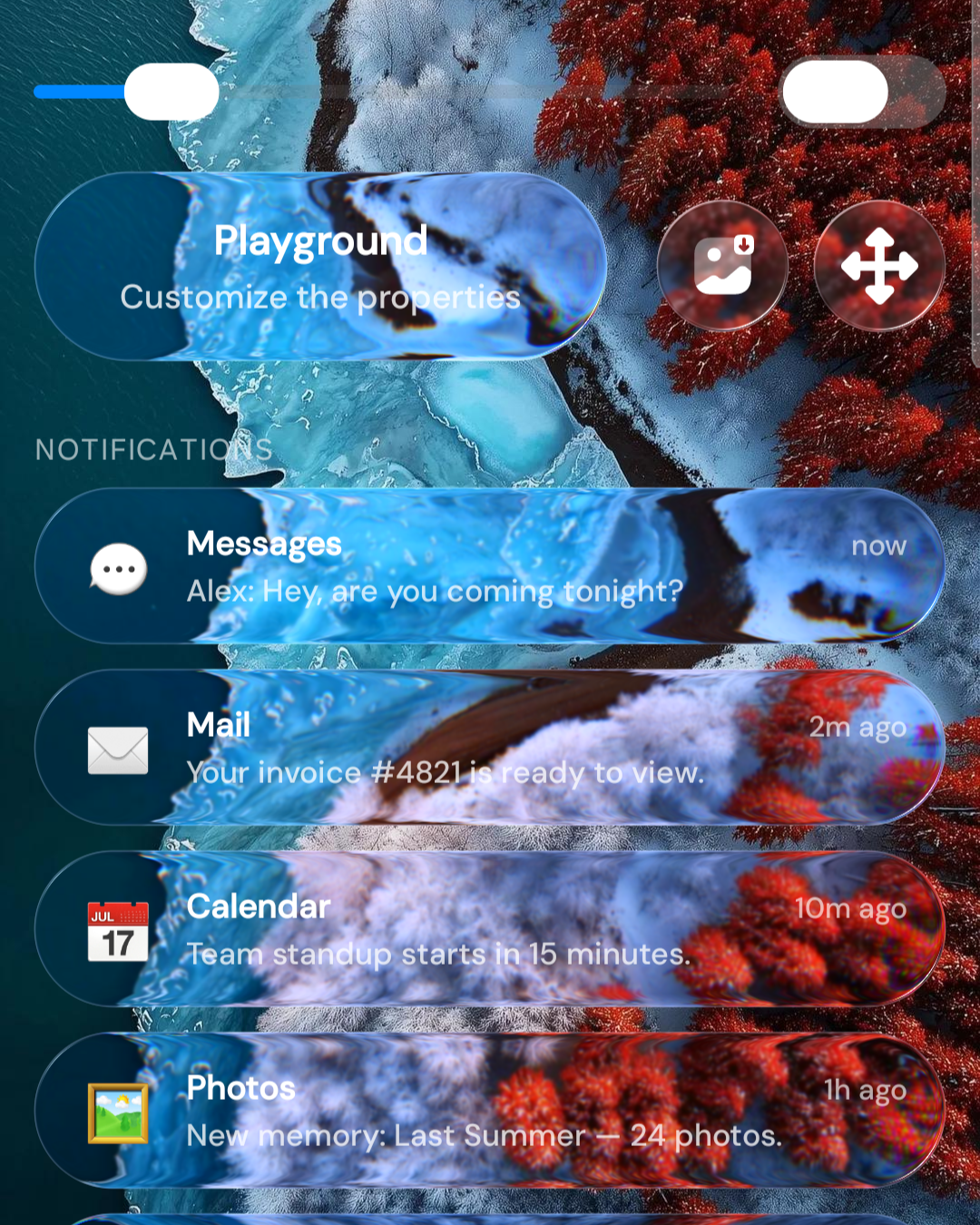

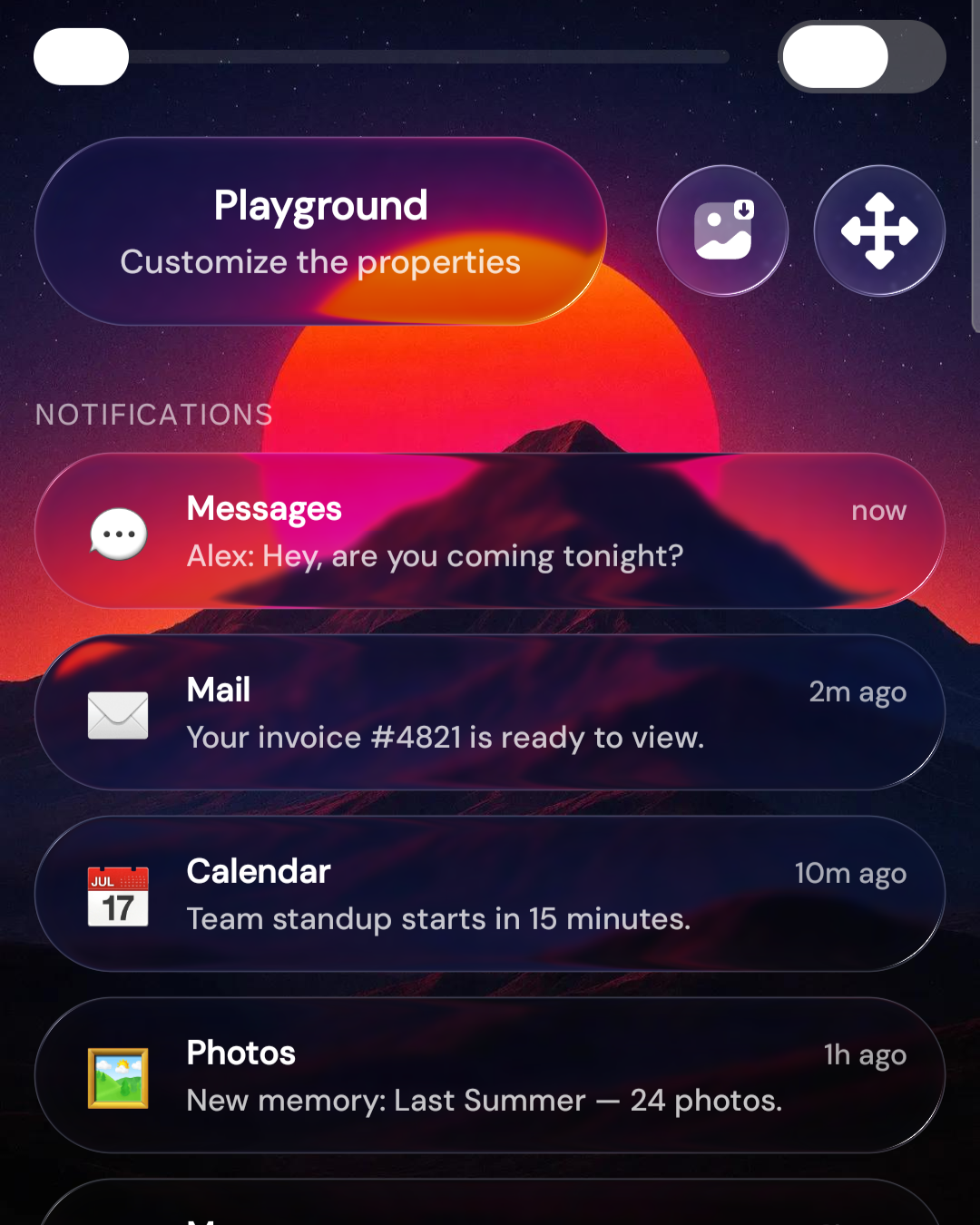

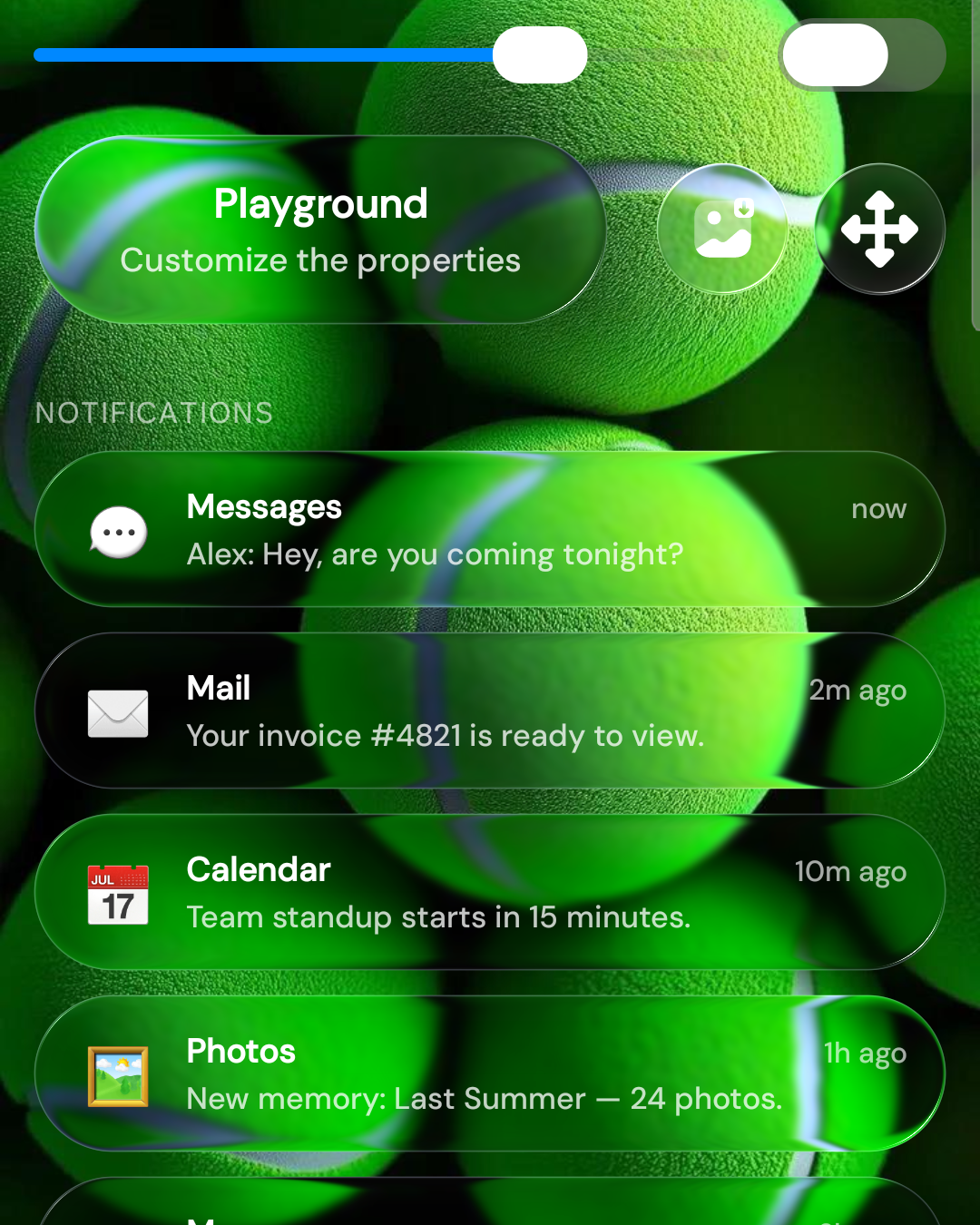

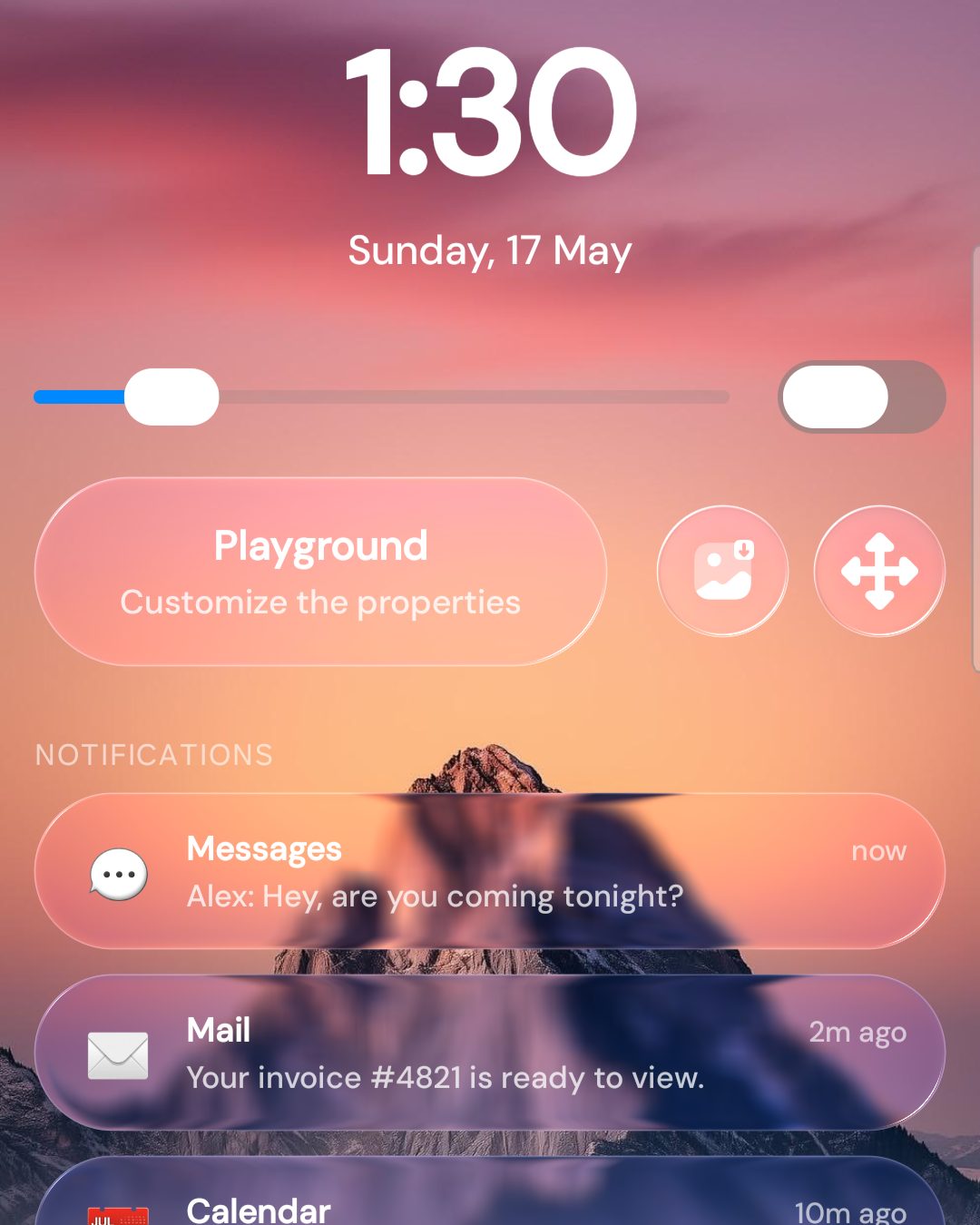

• Pre-built Components - Ready-to-use buttons, switches, sliders, and containers
• Performance Optimized - Efficient rendering with minimal overdraw and smart texture caching
• Fully Customizable - Extensive XML attributes and runtime APIs

---

Installation

Gradle

Add the JitPack repository to your root build.gradle:

allprojects {
    repositories {
        maven { url 'https://jitpack.io' }
    }
}

Add the dependency:

dependencies {
    implementation 'com.github.styropyr0:prismal:1.0.0'
}

Maven

<repositories>
    <repository>
        <id>jitpack.io</id>
        <url>https://jitpack.io</url>
    </repository>
</repositories>

<dependency>
    <groupId>com.github.yourusername</groupId>
    <artifactId>prismal</artifactId>
    <version>1.0.0</version>
</dependency>

Requirements

• Min SDK: 25 (Android 7, Nougat)
• Target SDK: 36
• OpenGL ES: 2.0+
• Kotlin: 2.0.21

---

Quick Start

Basic Usage

Add Prismal components to your layout:

<com.matrix.prismal.PrismalFrameLayout
    android:layout_width="300dp"
    android:layout_height="200dp"
    app:ior="1.5"
    app:blurRadius="3"
    app:cornerRadius="20dp">

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Glass Container"
        android:textColor="@android:color/white"
        android:layout_gravity="center" />

</com.matrix.prismal.PrismalFrameLayout>

Programmatic Configuration

val glassLayout = findViewById<PrismalFrameLayout>(R.id.glassContainer)

glassLayout.apply {
    setIOR(1.5f)
    setCornerRadius(25f)
    setThickness(15f)
    setBlurRadius(4f)
    setBrightness(1.2f)
    setChromaticAberration(2f)
}

---

Components

PrismalFrameLayout

Base container that renders glass effects. Acts as a standard FrameLayout with an OpenGL-rendered glass surface beneath its children.

Note that, all of the other Prismal views are subclasses of PrismalFrameLayout. PrismalFrameLayout handles most of the works within, such that it would be easier for users to make their own subclasses. All you need to do is inherit from PrismalFrameLayout, set up renderer (PrismalGlassRenderer), and implement methods for changing properties.

XML Attributes

Attribute	Type	Default	Description
app:glassWidth	float	view width	Glass surface width
app:glassHeight	float	view height	Glass surface height
app:ior	float	1.5	Index of Refraction (1.0-2.0)
app:glassThickness	dimension	15dp	Glass thickness affecting distortion
app:normalStrength	float	1.2	Surface normal influence
app:displacementScale	float	1.0	Displacement mapping intensity
app:heightTransitionWidth	float	8.0	Height field transition width
app:minSmoothing	float	1.0	SDF smoothing threshold
app:blurRadius	float	2.5	Background blur radius
app:highlightWidth	float	4.0	Edge highlight width
app:chromaticAberration	float	2.0	RGB color split intensity
app:brightness	float	1.15	Overall brightness multiplier
app:cornerRadius	dimension	10dp	Corner rounding
app:showNormals	boolean	false	Debug: visualize surface normals

API Methods

setRefractionInset(value: Float)
setGlassSize(width: Float, height: Float)
setCornerRadius(radius: Float)
setIOR(value: Float)
setThickness(value: Float)
setNormalStrength(value: Float)
setDisplacementScale(value: Float)
setHeightBlurFactor(value: Float)
setMinSmoothing(value: Float)
setBlurRadius(value: Float)
setHighlightWidth(value: Float)
setChromaticAberration(value: Float)
setBrightness(value: Float)
setShowNormals(show: Boolean)
setShadowProperties(color: Int, softness: Float)
setEdgeRefractionFalloff(value: Float)
updateBackground()

---

PrismalButton

Pressable glass button with scale animations and interactive refraction effects.

XML Example

<com.matrix.prismal.PrismalButton
    android:id="@+id/glassButton"
    android:layout_width="200dp"
    android:layout_height="60dp"
    app:ior="1.85"
    app:normalStrength="8"
    app:blurRadius="1"
    app:cornerRadius="32dp">

    <TextView
        android:text="Press Me"
        android:textColor="#FFFFFF"
        android:layout_gravity="center" />

</com.matrix.prismal.PrismalButton>

Attributes

• app:ior (float, default: 1.85)
• app:normalStrength (float, default: 8)
• app:displacementScale (float, default: 10)
• app:blurRadius (float, default: 1)
• app:chromaticAberration (float, default: 8)
• app:cornerRadius (dimension, default: 32dp)
• app:brightness (float, default: 1.0)
• app:highlightWidth (float, default: 4)
• app:showNormals (boolean, default: false)

API

setIOR(value: Float)
setNormalStrength(value: Float)
setDisplacementScale(value: Float)
setBlurRadius(value: Float)
setChromaticAberration(value: Float)
setCornerRadius(value: Float)
setBrightness(value: Float)
setHighlightWidth(value: Float)
setShowNormals(enabled: Boolean)
setOnClickListener(l: OnClickListener?)

---

PrismalIconButton

Circular glass button optimized for icons with automatic corner radius calculation.

XML Example

<com.matrix.prismal.PrismalIconButton
    android:id="@+id/iconButton"
    android:layout_width="56dp"
    android:layout_height="56dp"
    app:iconSrc="@drawable/ic_heart"
    app:iconPadding="12dp"
    app:ior="1.85"
    app:blurRadius="1.5"
    app:pressScale="0.88"
    app:animDuration="180" />

Attributes

• app:iconSrc (reference) - Icon drawable
• app:iconPadding (dimension, default: 8dp)
• app:pressScale (float, default: 0.88)
• app:animDuration (integer, default: 180ms)
• All optical parameters from PrismalButton

API

setIcon(resId: Int)
setIOR(value: Float)
setBlurRadius(value: Float)
setChromaticAberration(value: Float)
setDisplacementScale(value: Float)
setOnClickListener(l: OnClickListener?)

---

PrismalSwitch

Animated toggle switch with glass thumb and color-changing track.

XML Example

<com.matrix.prismal.PrismalSwitch
    android:id="@+id/glassSwitch"
    android:layout_width="120dp"
    android:layout_height="60dp"
    app:isOn="false"
    app:animDuration="250"
    app:thumbWidth="60dp"
    app:trackHeight="22dp"
    app:onColor="#00B624"
    app:offColor="#555555"
    app:thumbIOR="1.85"
    app:thumbBlurRadius="1"
    app:thumbCornerRadius="50dp"
    app:thumbShadowAlpha="70"
    app:thumbShadowSoftness="0.2" />

Attributes

• app:isOn (boolean, default: false)
• app:animDuration (integer, default: 250ms)
• app:thumbWidth (dimension, default: auto)
• app:trackHeight (dimension, default: 22dp)
• app:onColor (color, default: #00B624)
• app:offColor (color, default: #555555)
• app:thumbIOR (float, default: 1.85)
• app:thumbNormalStrength (float, default: 8)
• app:thumbDisplacementScale (float, default: 10)
• app:thumbBlurRadius (float, default: 1)
• app:thumbChromaticAberration (float, default: 8)
• app:thumbCornerRadius (dimension, default: 50dp)
• app:thumbBrightness (float, default: 1.175)
• app:thumbShadowSoftness (float, default: 0.2)
• app:thumbShadowAlpha (integer, default: 70)

API

setOn(on: Boolean, animated: Boolean = false)
isOn(): Boolean
setThumbIOR(value: Float)
setThumbNormalStrength(value: Float)
setThumbBlurRadius(value: Float)
setThumbChromaticAberration(value: Float)
setThumbCornerRadius(value: Float)
setThumbBrightness(value: Float)
setThumbShadow(color: Int, radius: Float)
setOnToggleChangedListener(listener: (Boolean) -> Unit)

---

PrismalSlider

Horizontal slider with draggable glass thumb on colored track.

XML Example

<com.matrix.prismal.PrismalSlider
    android:id="@+id/glassSlider"
    android:layout_width="match_parent"
    android:layout_height="80dp"
    app:maxValue="200"
    app:thumbWidth="60dp"
    app:thumbCornerRadius="50"
    app:thumbIOR="1.85"
    app:thumbBlurRadius="1"
    app:thumbBrightness="1.175"
    app:thumbShadowAlpha="80"
    app:thumbShadowSoftness="0.2" />

Attributes

• app:maxValue (float, default: 100)
• app:thumbWidth (dimension, default: 60dp)
• All thumb optical parameters matching PrismalSwitch

API

setValue(value: Float)
getValue(): Float
setMaxValue(value: Float)
setOnValueChangedListener(listener: (Float) -> Unit)
setThumbWidthDp(dpValue: Float)
setThumbIOR(value: Float)
setThumbBlurRadius(value: Float)
setThumbChromaticAberration(value: Float)
setThumbCornerRadius(value: Float)
setThumbBrightness(value: Float)
setThumbShadow(color: Int, radius: Float)
getThumb(): PrismalFrameLayout

---

Shader Architecture

Prismal uses custom GLSL ES 2.0 shaders to achieve realistic glass effects through a multi-stage rendering pipeline.

Rendering Pipeline

1. Background Capture - Captures view hierarchy as OpenGL texture
2. SDF Shape Generation - Creates smooth rounded rectangle using signed distance fields
3. Height Field Calculation - Generates depth map from SDF with sigmoid transition
4. Normal Computation - Calculates surface normals via gradient sampling
5. Refraction - Double refraction (air→glass→air) using Snell's law
6. Chromatic Aberration - Separates RGB channels along refraction direction
7. Blur Application - Shape-aware 9-tap blur respecting boundaries
8. Shadow & Highlights - Adds depth with inner shadow and Fresnel highlights
9. Final Composition - Combines all layers with opacity

Core Techniques

Signed Distance Fields (SDF)

Polynomial-smoothed SDFs create ultra-smooth glass edges:

float smin_polynomial(float a, float b, float k) {
    float h = clamp(0.5 + 0.5 * (b - a) / k, 0.0, 1.0);
    return mix(b, a, h) - k * h * (1.0 - h);
}

float sdRoundedBoxSmooth(vec2 p, vec2 b, float r, float k_smooth) {
    vec2 q = abs(p) - b + r;
    float termA = smax_polynomial(q.x, q.y, k_smooth);
    float termB = smin_polynomial(termA, 0.0, k_smooth * 0.5);
    vec2 q_clamped = vec2(
        smax_polynomial(q.x, 0.0, k_smooth),
        smax_polynomial(q.y, 0.0, k_smooth)
    );
    return termB + length(q_clamped) - r;
}

Height Field Generation

Converts distance field to glass thickness using sigmoid:

float getHeightFromSDF(vec2 p, vec2 b, float r, float k, float transition) {
    float dist = sdRoundedBoxSmooth(p, b, r, k);
    float normalized_dist = dist / transition;
    float height = 1.0 - (1.0 / (1.0 + exp(-normalized_dist * 6.0)));
    return clamp(height, 0.0, 1.0);
}

Fresnel Effect

Schlick's approximation for angle-dependent reflectivity:

float fresnel(vec3 normal, vec3 viewDir, float ior) {
    float cosTheta = abs(dot(normal, viewDir));
    float r0 = pow((1.0 - ior) / (1.0 + ior), 2.0);
    return r0 + (1.0 - r0) * pow(1.0 - cosTheta, 5.0);
}

Double Refraction

Simulates light path through glass:

vec3 refractedIn = refract(-viewDir, surfaceNormal3D, 1.0 / u_ior);
vec3 refractedOut = refract(refractedIn, -surfaceNormal3D, u_ior);
vec2 refractionOffset = refractedOut.xy * u_glassThickness * strength;

Chromatic Aberration

Wavelength-dependent refraction:

float chromaIntensity = u_chromaticAberration * 0.002 * depthFalloff;
vec2 refractionDir = normalize(baseOffset);

vec2 offsetR = baseOffset - refractionDir * chromaIntensity;
vec2 offsetG = baseOffset;
vec2 offsetB = baseOffset + refractionDir * chromaIntensity;

vec3 refractedColor = vec3(cR.r, cG.g, cB.b);

Shape-Aware Blur

9-tap blur respecting glass boundaries:

vec3 blur9(sampler2D tex, vec2 uv, vec2 offset, ...) {
    vec3 accum = vec3(0.0);
    float weightSum = 0.0;

    for(int y = -1; y <= 1; ++y) {
        for(int x = -1; x <= 1; ++x) {
            vec2 sampleUV = uv + offset + sampleOffset;
            float sampleOpacity = getShapeOpacity(sampleShapeCoord, ...);

            if(sampleOpacity > 0.001) {
                accum += texture2D(tex, sampleUV).rgb * sampleOpacity;
                weightSum += sampleOpacity;
            }
        }
    }

    return weightSum > 0.001 ? accum / weightSum : vec3(0.0);
}

Shader Parameters (If you're a nerd or wish to contribute)

Uniform	Type	Range	Description
u_ior	float	1.0-2.0	Index of Refraction
u_glassThickness	float	1-100	Glass depth
u_normalStrength	float	0-20	Surface bumpiness
u_displacementScale	float	0.1-10	Refraction displacement
u_cornerRadius	float	0-∞	Corner radius in pixels
u_sminSmoothing	float	0-10	SDF smoothing
u_heightTransitionWidth	float	1-50	Height field transition
u_blurRadius	float	0-20	Background blur
u_chromaticAberration	float	0-20	RGB color split
u_brightness	float	0.5-2.0	Brightness multiplier
u_refractionInset	float	0-100	Edge fade distance
u_edgeRefractionFalloff	float	1-10	Edge decay sharpness
u_shadowColor	vec4	RGBA	Inner shadow color
u_shadowSoftness	float	0-1	Shadow blur extent
u_showNormals	int	0/1	Debug mode

Performance

Per-frame operations:

• 27 texture samples per fragment (9 × 3 RGB)
• 4 height field evaluations for gradients
• 2 refraction calculations
• Early fragment discard for optimization

Typical performance:

• 60 FPS on mid-range devices (Snapdragon 600+)
• ~2-3ms frame time for 300×200dp surface
• Scales efficiently with hierarchy complexity

---

Shader Setup

Directory Structure

app/
 └── src/
      └── main/
           └── res/
                └── raw/
                     ├── background_vert.vert
                     └── background_frag.frag
                     └── fragment_shader.frag
                     └── vertex_shader.frag

Vertex Shader

It takes vertex positions (a_position) of a quad representing the glass surface, scales them by u_glassSize, and offsets them around the mouse position (u_mousePos). It then converts the result into clip-space coordinates for rendering (gl_Position). The shader also outputs normalized texture and shape coordinates for use in the fragment shader.

Fragment Shader

The complete fragment shader is provided in fragment_shader.glsl. It includes:

• Smooth min/max polynomial functions
• SDF rounded box calculations
• Height field generation
• Fresnel computation
• Surface gradient calculation
• Shape opacity functions
• Blur implementation with shape awareness
• Main rendering pipeline

Loading Shaders

object ShaderUtils {
    fun loadFromAssets(context: Context, filename: String): String {
        return context.assets.open(filename).bufferedReader().use { it.readText() }
    }
}

class PrismalGlassRenderer(private val context: Context) : GLSurfaceView.Renderer {
    override fun onSurfaceCreated(gl: GL10?, config: EGLConfig?) {
        val vertexSource = ShaderUtils.loadFromAssets(context, "shaders/vertex_shader.glsl")
        val fragmentSource = ShaderUtils.loadFromAssets(context, "shaders/fragment_shader.glsl")
        // Compile and link shaders...
    }
}

---

Integration Guide

Basic Integration

1. Add dependency to build.gradle
2. Create shader files in assets/shaders/
3. Add Prismal components to layouts
4. Configure optical parameters

Custom Glass Materials

object GlassMaterials {
    fun applyWindowGlass(layout: PrismalFrameLayout) {
        layout.apply {
            setIOR(1.52f)
            setThickness(20f)
            setBlurRadius(1f)
            setChromaticAberration(1.5f)
        }
    }

    fun applyFrostedGlass(layout: PrismalFrameLayout) {
        layout.apply {
            setIOR(1.5f)
            setThickness(15f)
            setBlurRadius(8f)
            setChromaticAberration(0.5f)
        }
    }
}

Background Updates

// Manual update
glassLayout.updateBackground()

// After layout changes
glassLayout.viewTreeObserver.addOnGlobalLayoutListener {
    glassLayout.updateBackground()
}

// Throttled updates for performance
private var lastUpdate = 0L
private val updateInterval = 50L

fun updateIfNeeded() {
    val now = System.currentTimeMillis()
    if (now - lastUpdate > updateInterval) {
        glassLayout.updateBackground()
        lastUpdate = now
    }
}

---

Performance Optimization

Texture Capture

Minimize capture frequency:

// Good - manual control
glassLayout.updateBackground()

// Bad - unnecessary updates
glassLayout.setOnClickListener {
    glassLayout.updateBackground() // Content unchanged
}

Render Mode

// Continuous - animations
glSurfaceView.renderMode = GLSurfaceView.RENDERMODE_CONTINUOUSLY

// On-demand - static content
glSurfaceView.renderMode = GLSurfaceView.RENDERMODE_WHEN_DIRTY
glSurfaceView.requestRender()

Device-Specific Tuning

data class GlassSettings(
    val ior: Float,
    val blur: Float,
    val chromatic: Float
) {
    companion object {
        val HIGH_QUALITY = GlassSettings(1.75f, 4f, 8f)
        val BALANCED = GlassSettings(1.6f, 2f, 4f)
        val LOW_QUALITY = GlassSettings(1.5f, 1f, 0f)
    }
}

---

Design Guidelines

Recommended Parameter Ranges

Effect	Subtle	Moderate	Dramatic
IOR	1.3-1.4	1.5-1.6	1.7-2.0
Blur Radius	0.5-1.5	2.0-4.0	5.0-10.0
Normal Strength	0.5-2.0	3.0-8.0	10.0-20.0
Chromatic Aberration	0.5-1.5	2.0-5.0	6.0-15.0
Brightness	1.0-1.1	1.15-1.3	1.4-1.8

Best Practices

• Keep glass surfaces under 400×400dp for optimal performance
• Use higher brightness (1.2-1.5) for content containers
• Reduce blur for text readability
• Match corner radius to app design language
• Consider device capabilities for parameter selection

---

Troubleshooting

Common Issues

Glass effect not visible

• Verify shaders in assets/shaders/
• Ensure background content exists
• Call updateBackground() after layout
• Increase normalStrength or displacementScale

Distortion too strong

• Reduce normalStrength to 1.0-3.0
• Lower displacementScale to 0.5-1.0
• Decrease glassThickness to 10-15

Performance problems

• Reduce blurRadius to 1-2
• Decrease surface dimensions
• Use RENDERMODE_WHEN_DIRTY for static content
• Disable chromatic aberration on low-end devices

Sharp/pixelated edges

• Increase minSmoothing to 2-5
• Ensure appropriate cornerRadius
• Verify EGL config includes anti-aliasing

Debug Mode

glassLayout.setShowNormals(true)

Displays surface normals as RGB colors for debugging surface calculations.

---

Sample Implementation

class MainActivity : AppCompatActivity() {

    private lateinit var glassContainer: PrismalFrameLayout

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)

        glassContainer = findViewById(R.id.glassContainer)
        glassContainer.apply {
            setIOR(1.5f)
            setBlurRadius(3f)
            setCornerRadius(20f)
            setBrightness(1.2f)
        }
    }

    override fun onResume() {
        super.onResume()
        glassContainer.updateBackground()
    }
}

<RelativeLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <com.matrix.prismal.PrismalFrameLayout
        android:id="@+id/glassContainer"
        android:layout_width="300dp"
        android:layout_height="200dp"
        android:layout_centerInParent="true"
        app:ior="1.5"
        app:blurRadius="3"
        app:cornerRadius="20dp">

        <TextView
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="Glass Container"
            android:textColor="@android:color/white"
            android:layout_gravity="center" />

    </com.matrix.prismal.PrismalFrameLayout>

</RelativeLayout>

---

Contributing

Contributions are welcome. Please follow these guidelines:

1. Fork the repository
2. Create a feature branch
3. Follow Kotlin coding conventions
4. Add tests for new features
5. Update documentation
6. Submit pull request with clear description

---

Support

• Issues: GitHub Issues
• Documentation: Library Documentation
• Changelog: CHANGELOG.md

---
