Yanami is an Android client for the Komari server monitoring tool, built with the Material Design 3 design language.

A Material Design 3 Android client for the Komari server monitoring tool.

---

Features

• Multi-Instance Management — Add, edit, and switch between multiple Komari server instances.
• Three Authentication Modes — Support password, API Key, and guest mode authentication.
• Real-Time Node List — WebSocket real-time push for node status (CPU / RAM / Disk / Network IO).
• Node Detail Dashboard — Load history line charts, Ping latency trends, basic server information.
• SSH Terminal — Full-featured ANSI/VT100 terminal based on termux terminal-view + WebSocket, supporting special key toolbars and font size adjustment.
• Home Screen Widget — Glance widget for node overview, refresh, and update interval configuration.
• Tablet Landscape Layout — Adaptive large-screen layout with NavigationRail, multi-column lists, and split detail panels.
• Multi-Language Support — Chinese (Default), English, Japanese.
• Theme System — Material You dynamic colors (Android 12+) + 6 preset color palettes, supporting dark/light mode and system-following mode.

Screenshots

Expand

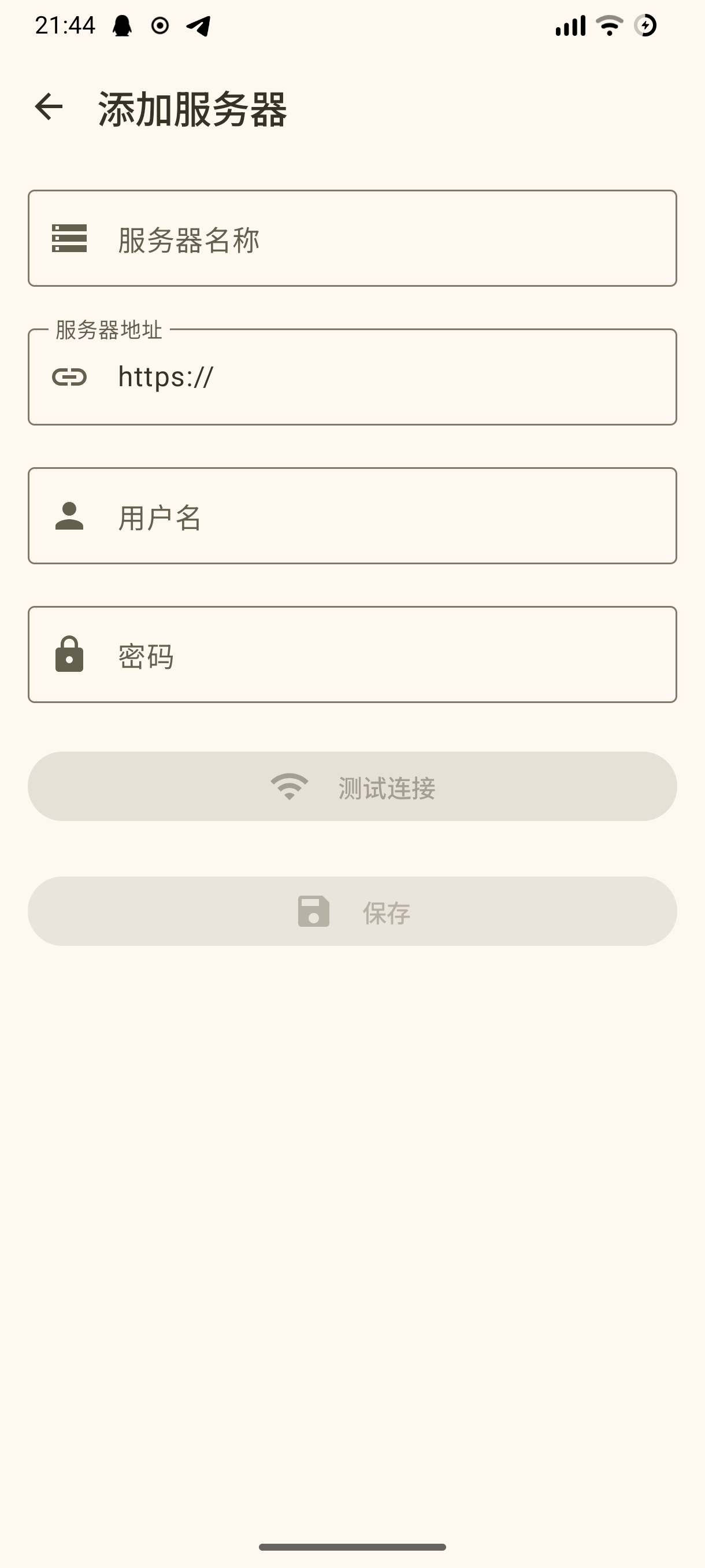

Instance Management

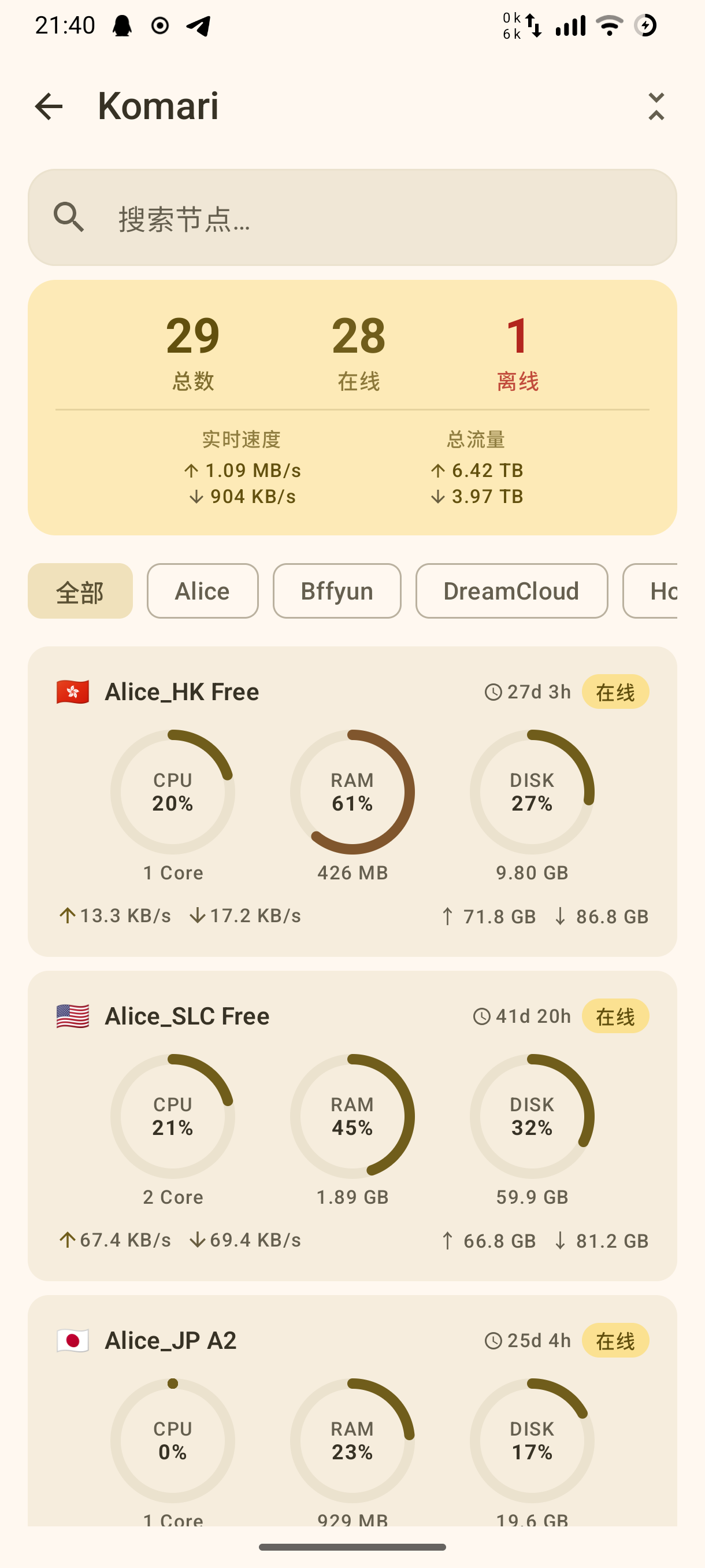

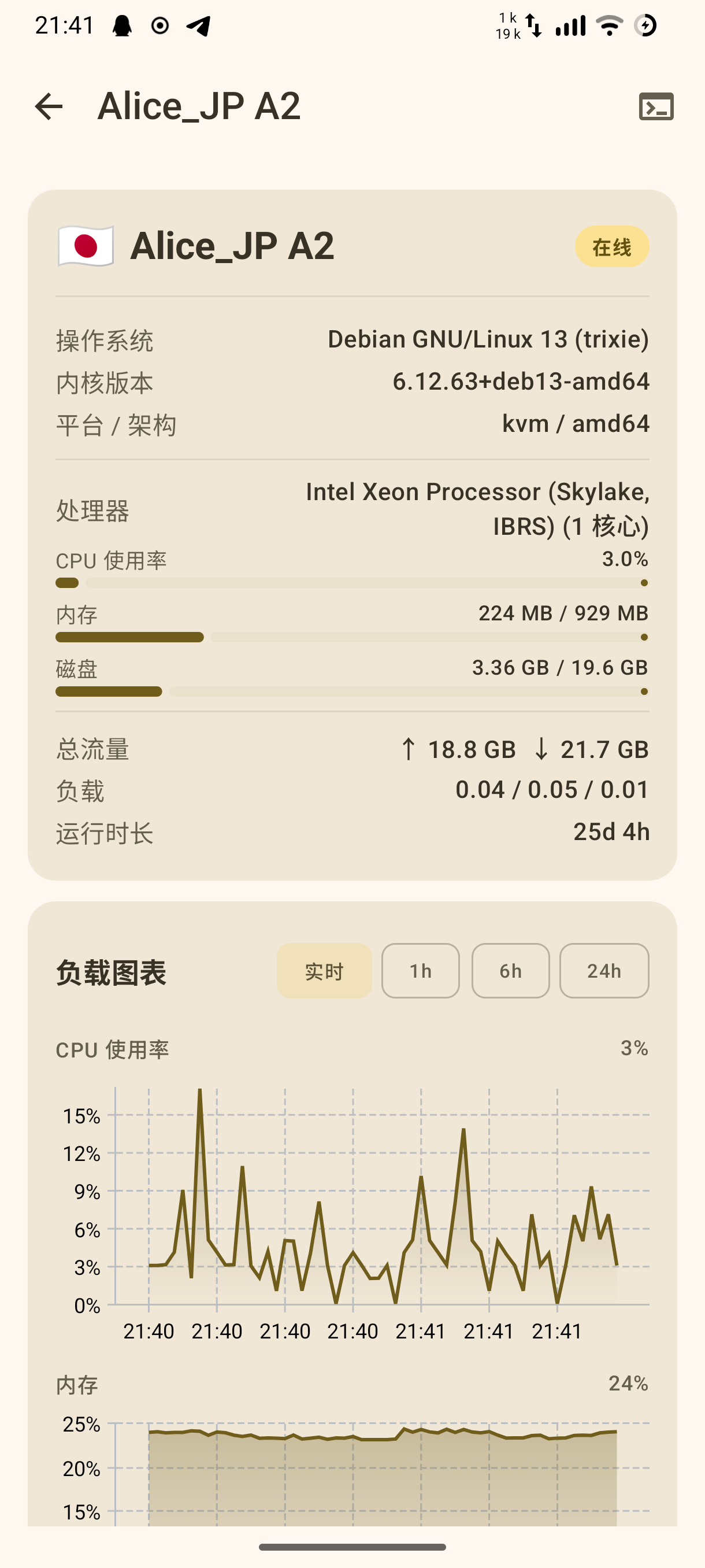

Day/Light Mode (Phone)

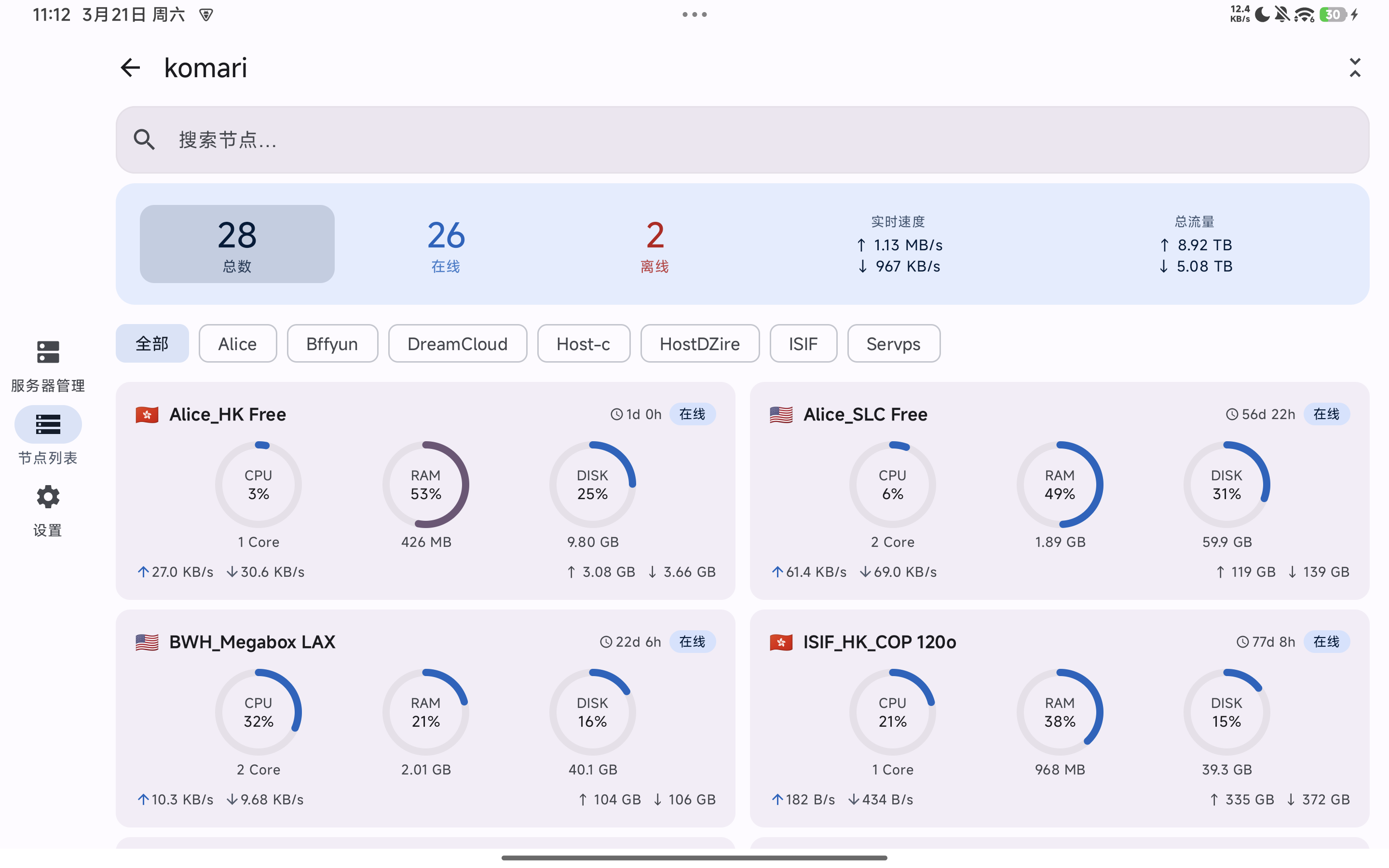

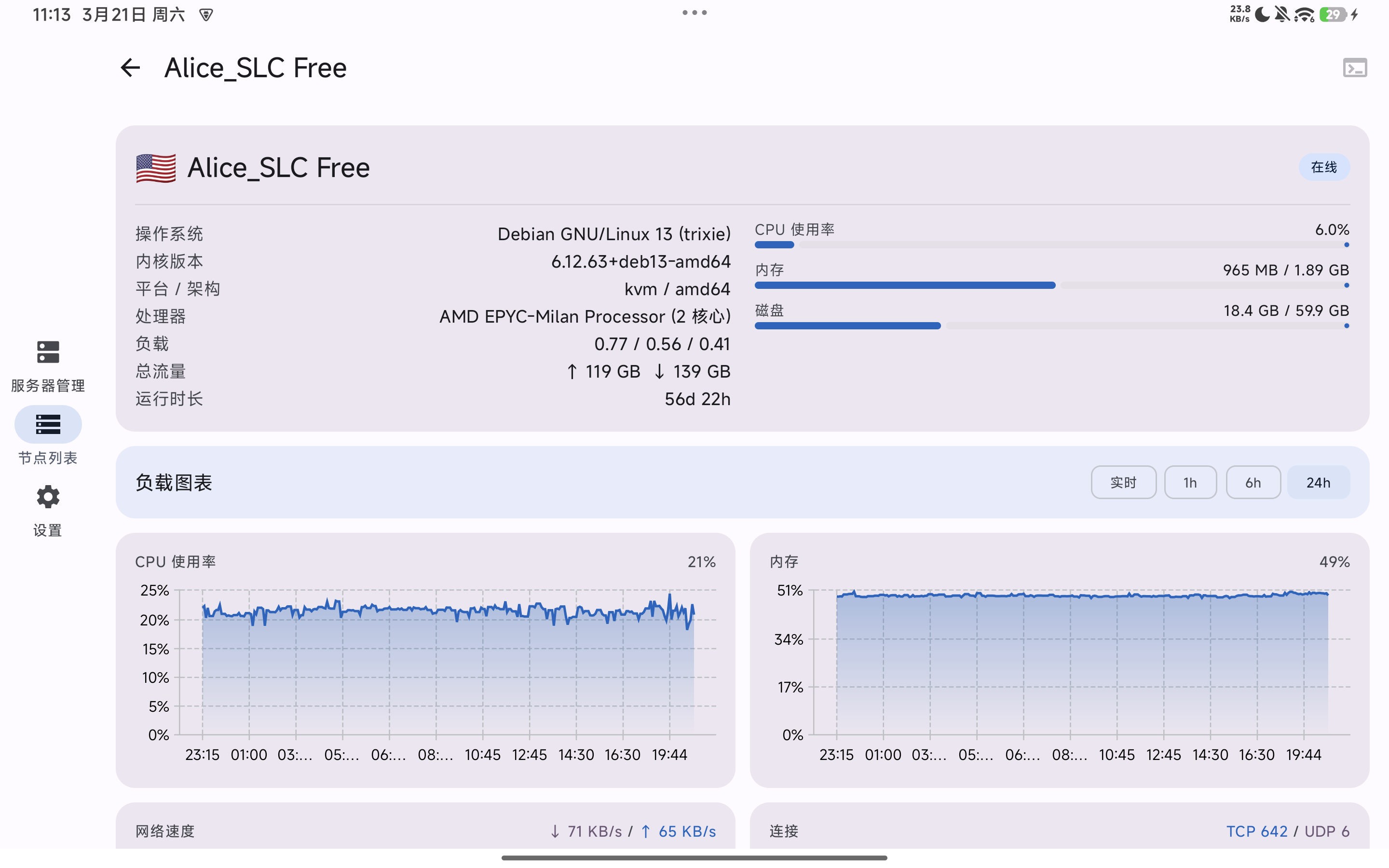

Day/Light Mode (Tablet)

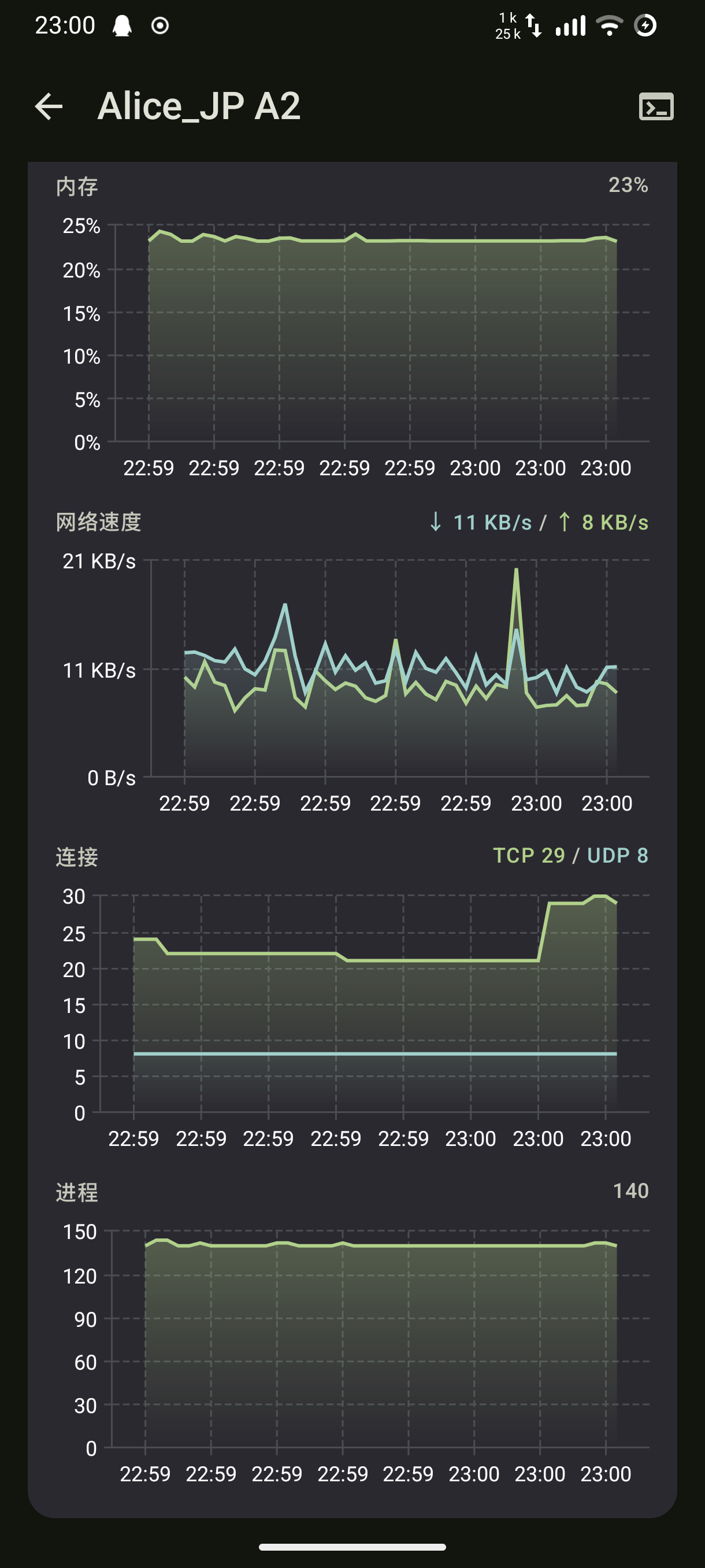

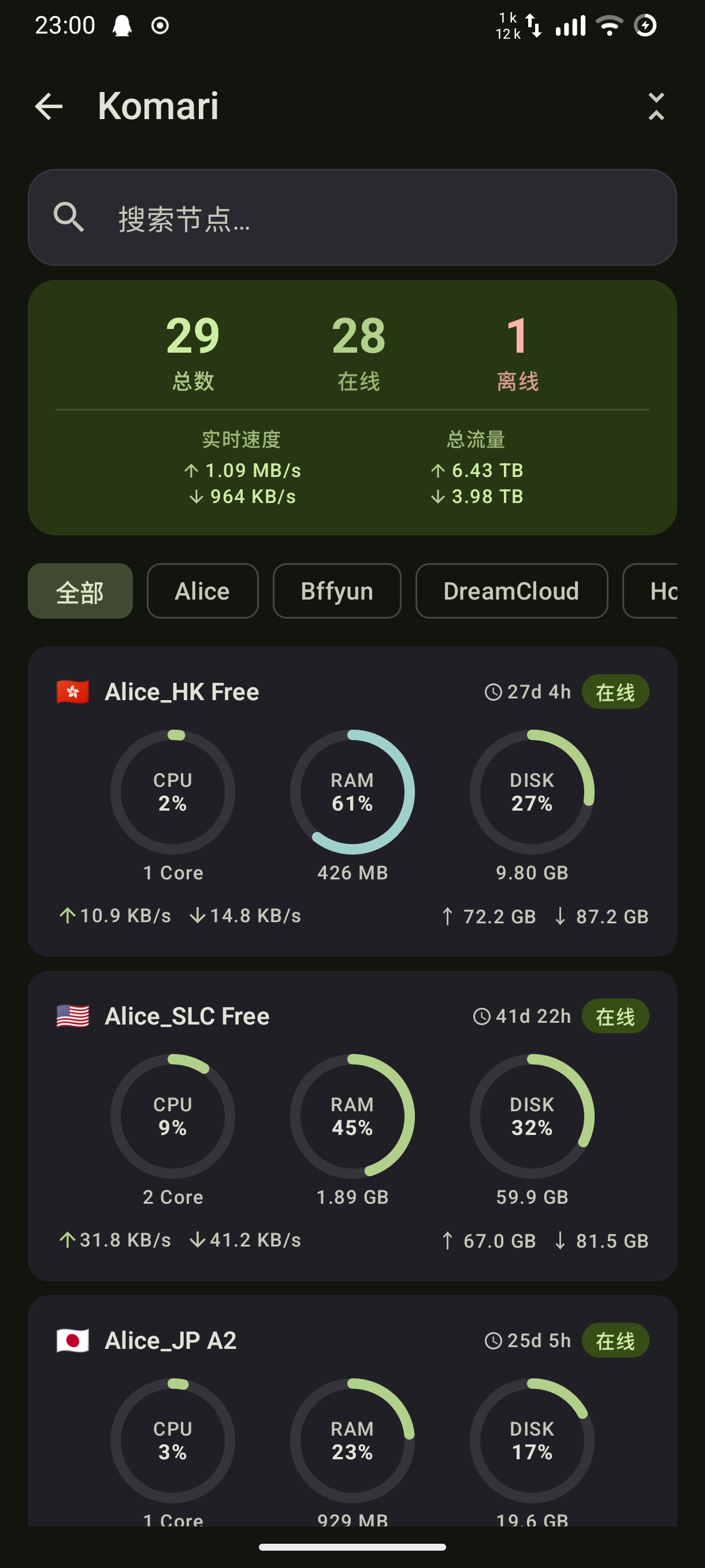

Night/Dark Mode

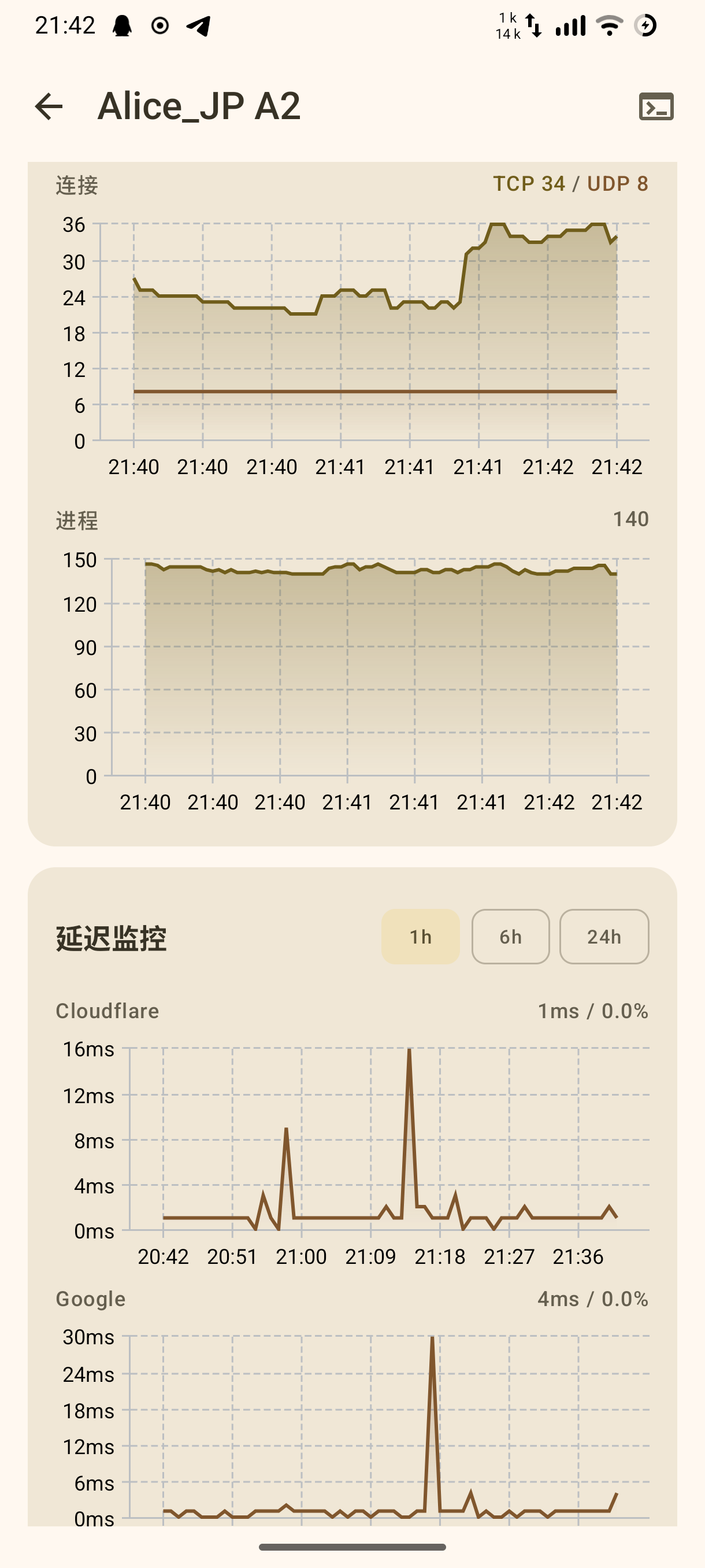

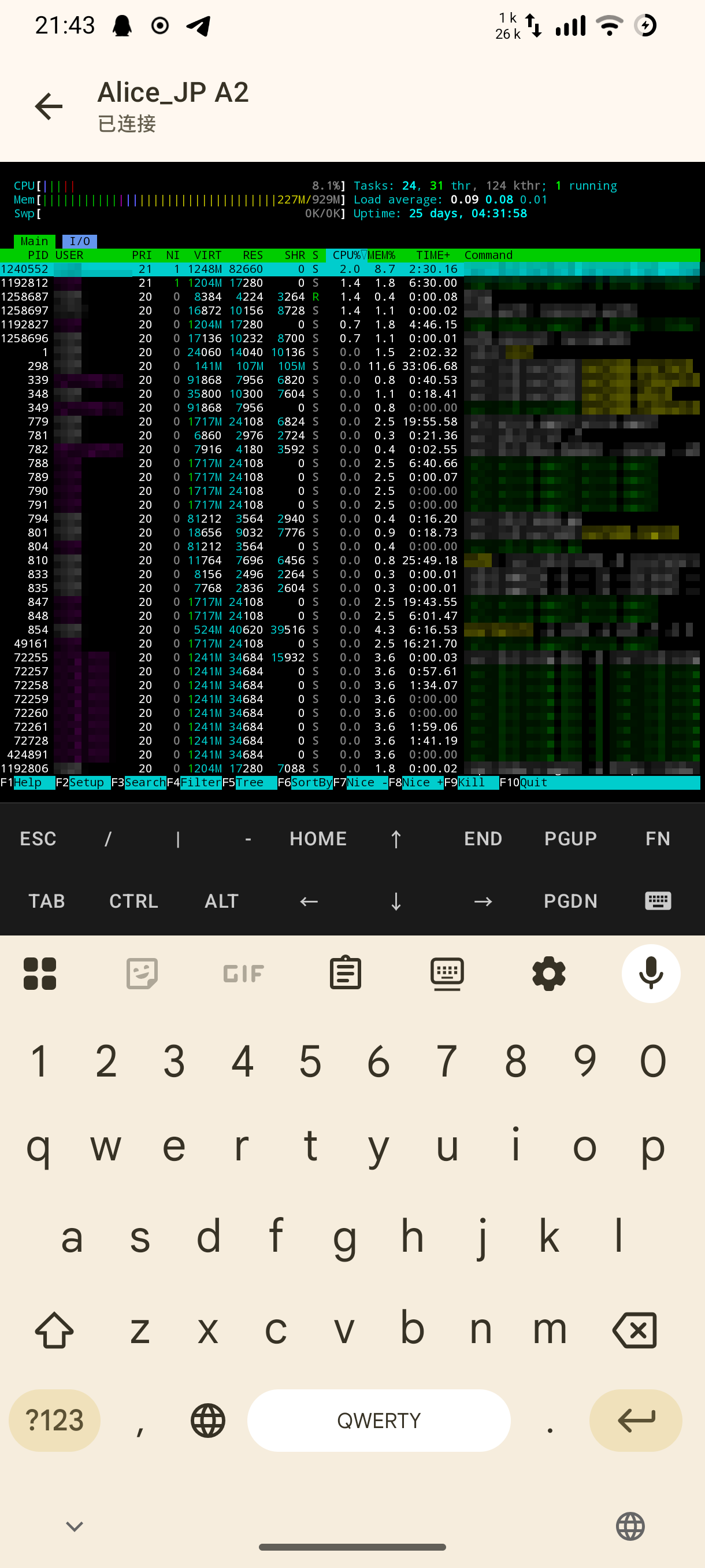

Latency Monitoring/SSH Terminal

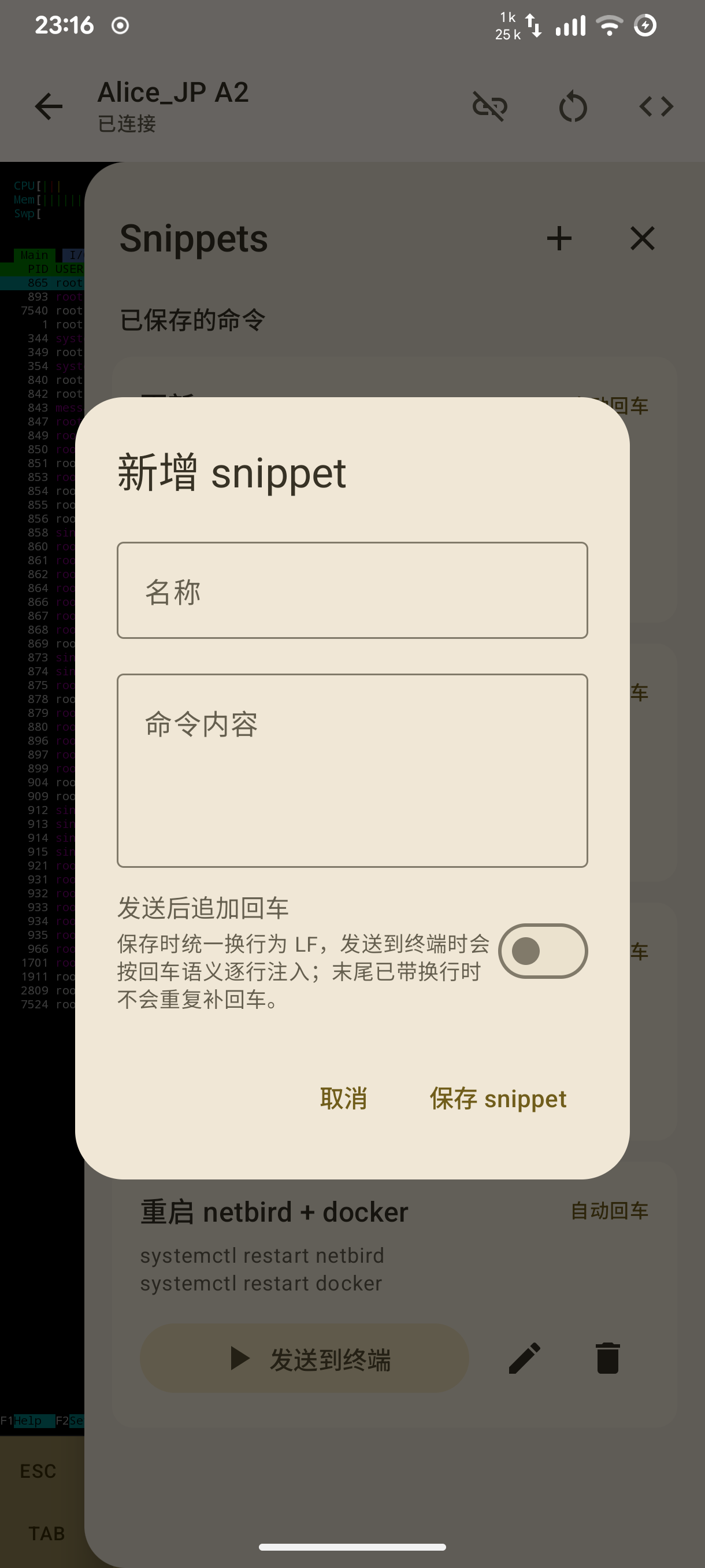

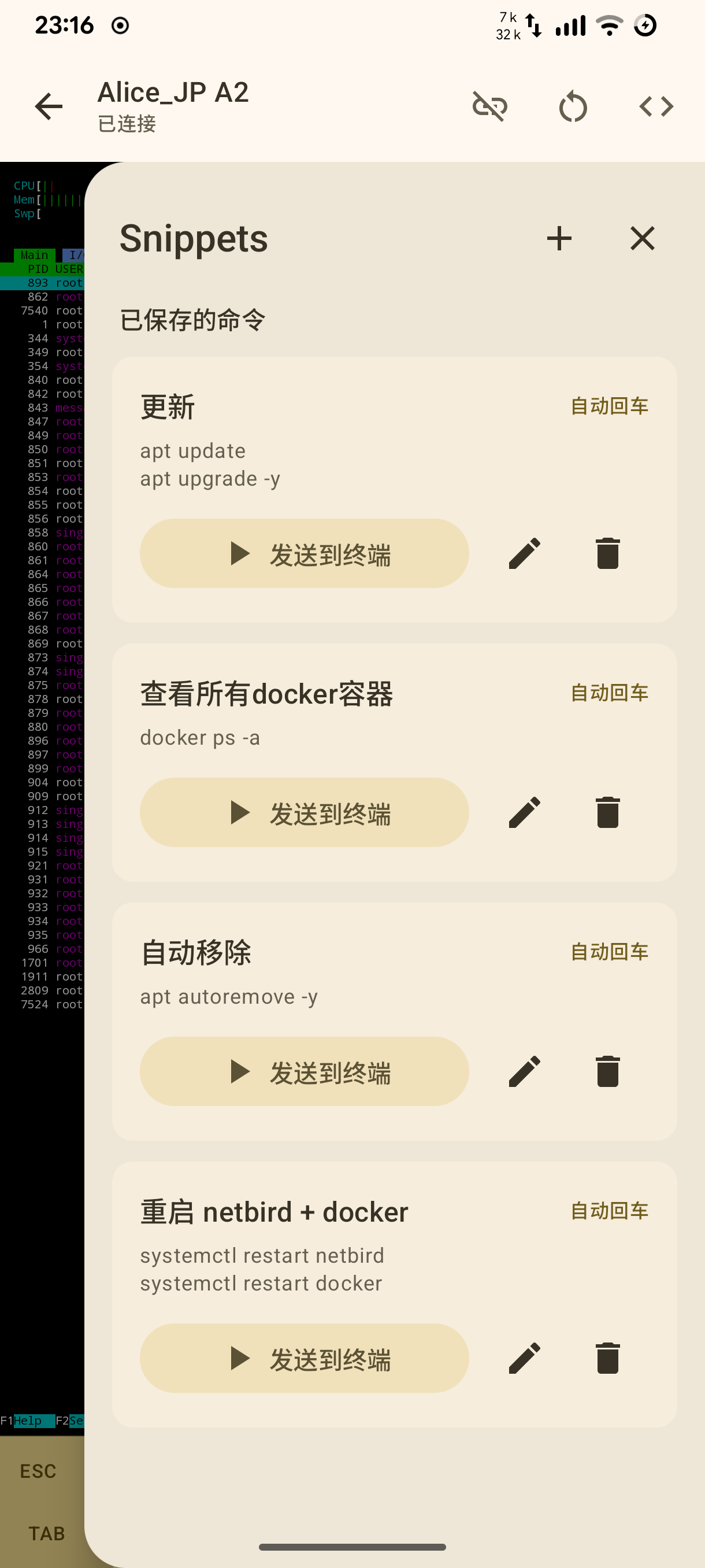

Snippets

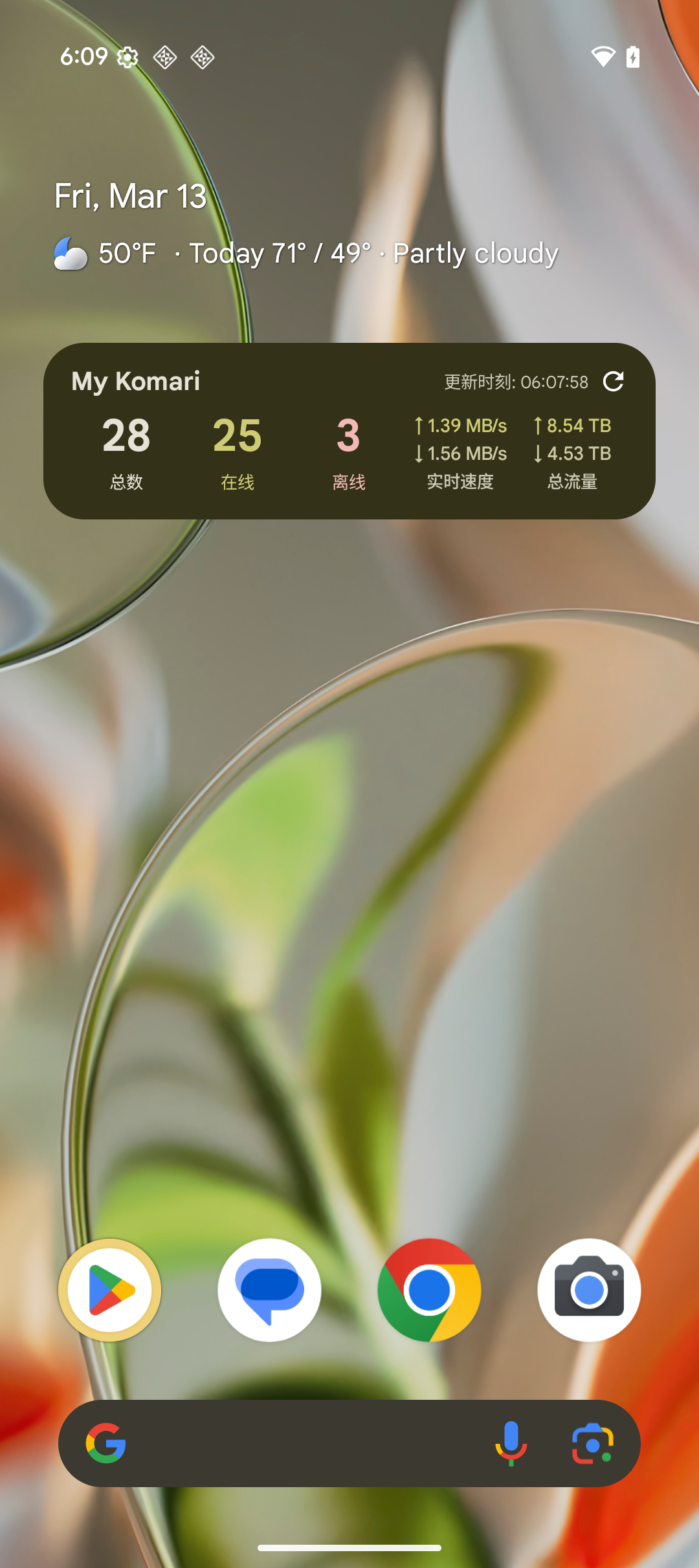

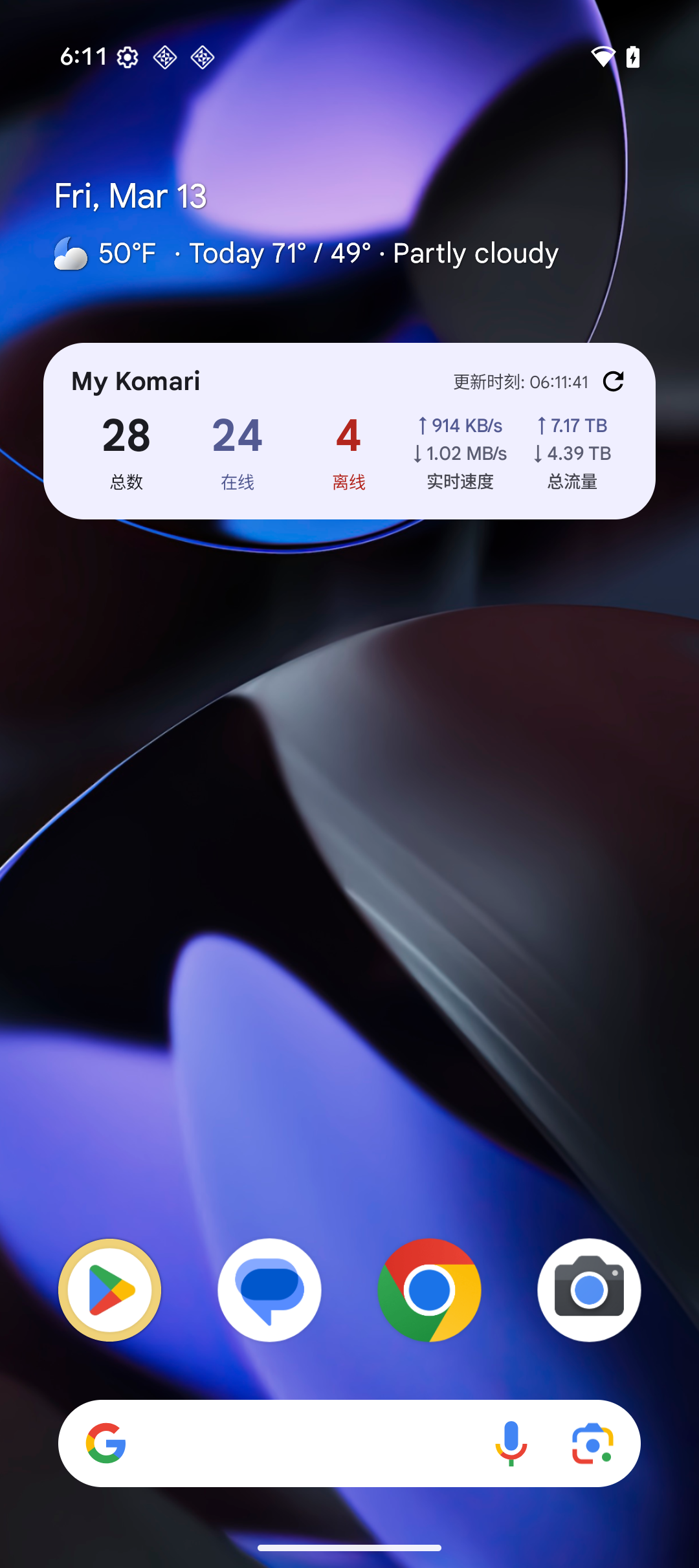

Widget

System Requirements

Item	Requirement
Android	9.0 (API 28) and above
Server	Komari 1.1.7 or above

Build

# Debug APK
./gradlew assembleDebug

# Release APK
./gradlew assembleRelease

# Clean and Build
./gradlew clean assembleDebug

Build outputs are located at app/build/outputs/apk/.

Tech Stack

Library	Version	Purpose
Kotlin	2.3.10	Main language
Jetpack Compose BOM	2026.02.01	UI Framework
MD3	—	Design System
Voyager	1.1.0-beta03	Navigation + ScreenModel
Koin	4.1.1	Dependency Injection
Ktor	3.4.1	HTTP Client + WebSocket
Room	2.8.4	Local Database (Encrypted credential storage)
Vico	3.0.3	Charts (Compose M3)
termux terminal-view	0.119.0-beta.3	Terminal ANSI/VT100 Rendering
DataStore Preferences	1.2.0	User Preferences Persistence

Architecture

Adopts the MVI (Model-View-Intent) pattern with an adaptive root shell:

UI Layer      MainActivity Root Shell + Voyager Screen + Compose UI + MviViewModel<State, Event, Effect>
Domain Layer  Repository Interface + Domain Model (Node, ServerInstance …)
Data Layer    Repository Implementation, Ktor, Room, DataStore

Each page follows the Contract Pattern, describing the complete MVI contract of the page with nested State / Event / Effect.

Navigation Flow

ServerListScreen → AddServerScreen
                 → NodeListScreen → NodeDetailScreen → SshTerminalScreen
                 → SettingsHubScreen → SettingsScreen / AboutScreen

Authentication & Network

• PASSWORD — Obtain session_token via POST /api/login (supports 2FA).
• API_KEY — Use Authorization: Bearer <api-key> directly, without login flow.
• GUEST — No authentication header; monitor APIs and WebSocket data remain available, but SSH terminal is disabled.
• Credentials and session data are encrypted with AES/GCM and stored in Room, automatically restored on startup.
• WebSocket (wss://host/api/rpc2) always requires the Origin header.
• SessionCookieInterceptor / network layer automatically inject Cookie, Bearer token, or skip auth headers according to authType.

Adaptive Layout

• Phone / narrow width: standard Voyager stack navigation.
• Tablet landscape: root-level NavigationRail + content pane.
• Node and server lists switch to multi-column card layouts on wide landscape screens.
• Node detail charts and info cards use split wide-screen layouts.
• Form and settings pages use centered constrained-width content on large screens.

License

This project is licensed under the MIT License.
