NoteLite builds on the Audiveris optical music recognition engine, keeping the original desktop editor and adding a separate practice mode. Recognize a PDF or image, review and correct the score, then export MusicXML / MIDI or start playing along.

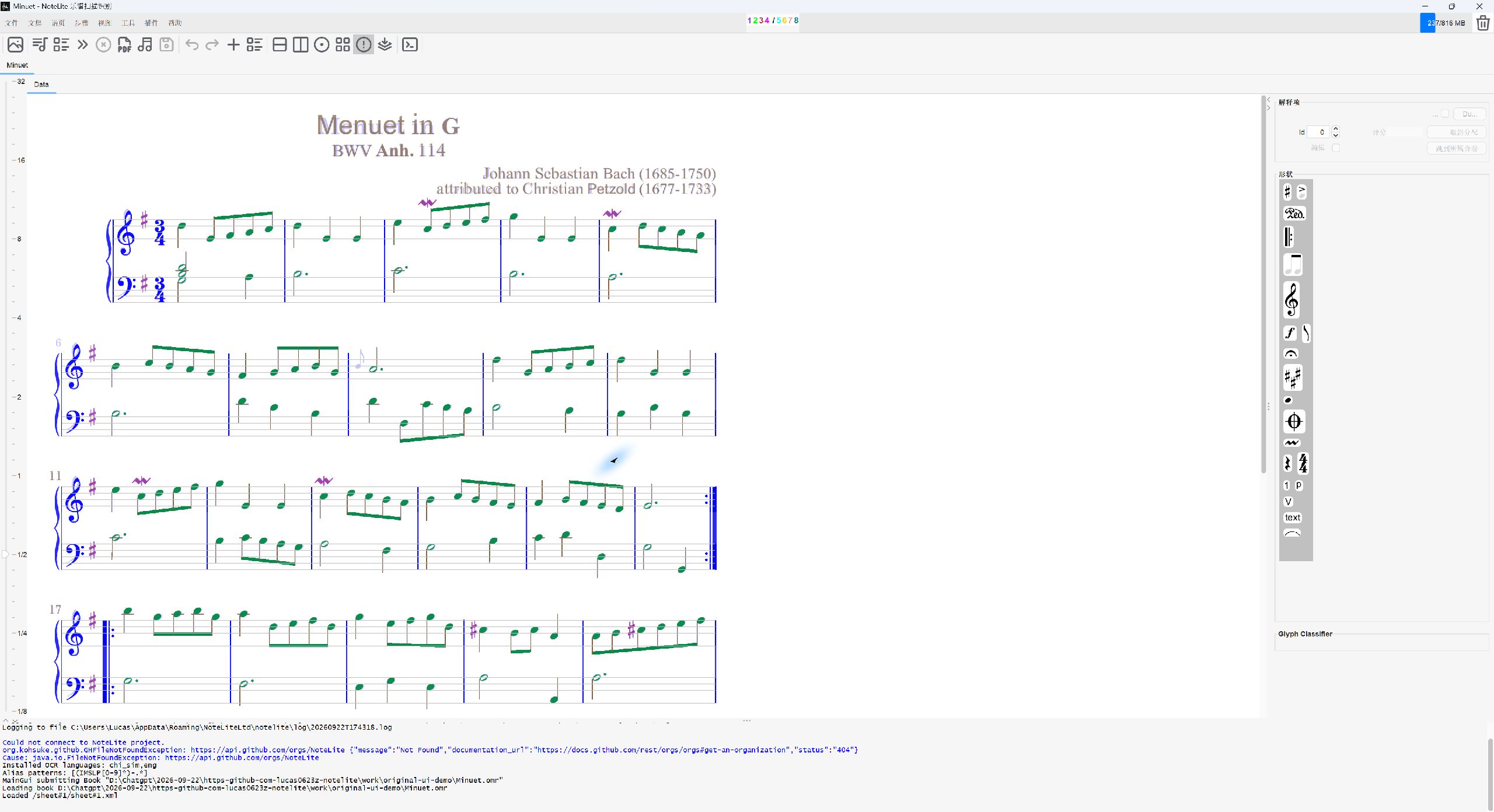

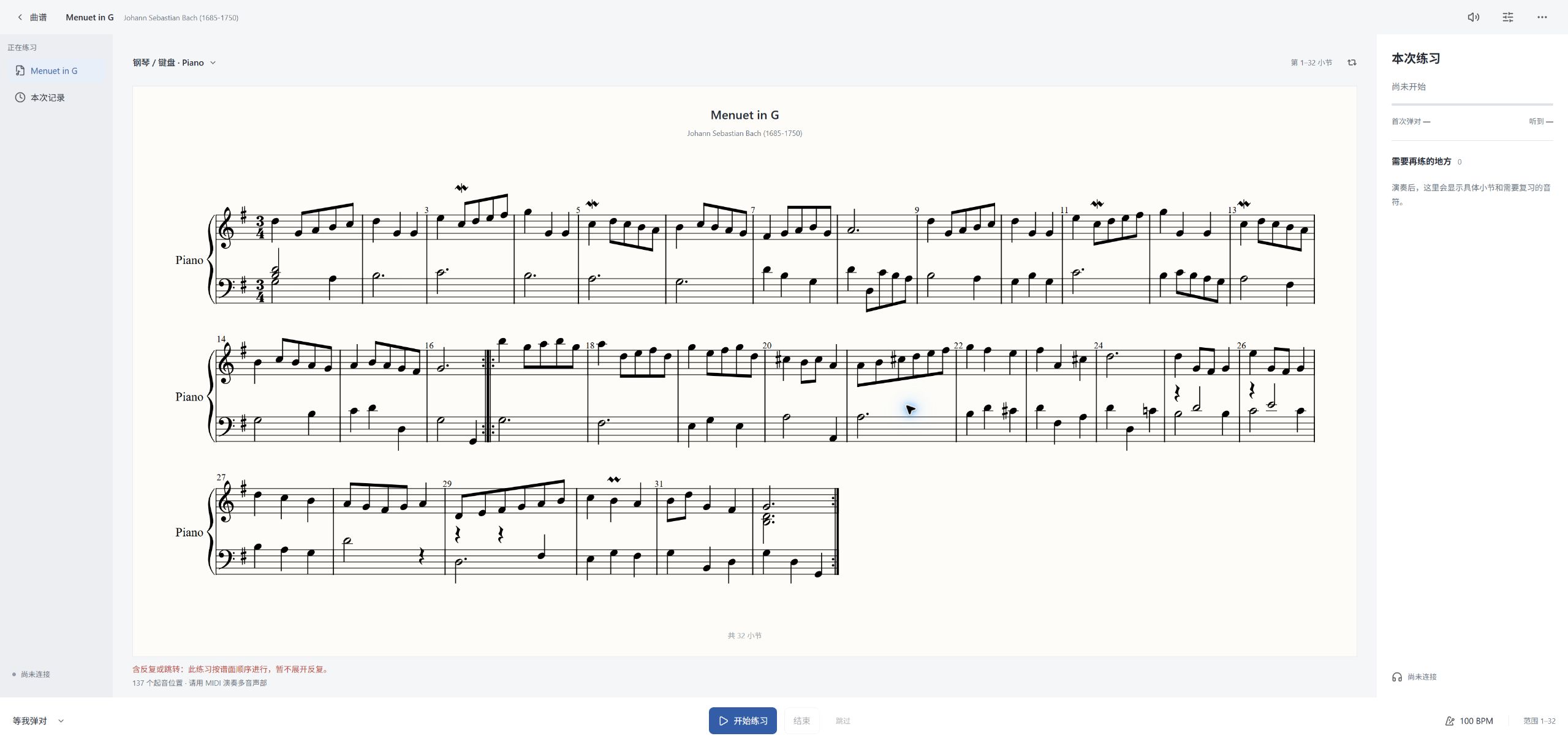

Original desktop editor	Practice mode
Recognize, inspect, and correct the score	Follow the score, find mistakes, and review a session

Both screenshots show the same piece, Minuet in G major. The original editor remains available. Open practice from the Book menu to launch it in a local browser window.

Recognize, refine, and practice

Recognition and editing	Guided practice
Import PDFs, scans, and sheet music images	Import MusicXML / MXL or use the current recognition result
Inspect and correct recognition results in the original editor	Choose an input based on the score's instrument information, with manual overrides
Export MusicXML, compressed MusicXML, and MIDI	Select parts, measures, and tempo for a practice session
Keep the complete editing workflow, with Chinese menus and toolbars available	See wrong and missing notes, review a session, and retry a passage

Practice offers a wait mode that advances when the expected notes are played, and a tempo mode for playing in time. Score rendering and pitch detection run locally. Desktop practice opens in your browser while the editor stays available.

Input methods

Input	Scope
MIDI	MIDI-capable instruments; matches single notes and chords, and checks pitch and note onset timing
Microphone	One pitched voice at a time; no individual-note scoring for chords, strumming, or ensembles
Computer keyboard	A demo input for trying score following and note feedback

Instrument suggestions use the score's instrument names, parts, and MIDI programs. You can select an instrument manually when that information is missing. Practice does not assess tone, pedal use, fingering, or touch. Continuous playing across real instruments still needs further validation.

If you have PianoBooster installed, the desktop menu can also send it the current score or an external MIDI file. MusicXML / MXL exported by other recognition tools can be imported directly into NoteLite. These integrations use file exchange.

Platforms

Version	Main features	Requirements and layout
Windows / Linux / macOS desktop	Full recognition, manual score editing, export, and practice	Java desktop editor; macOS packaging supports Apple Silicon and Intel
Native iPhone / iPad client	Score library, source previews, recognition jobs, practice, and session history	iOS / iPadOS 16+; phone navigation and a split view on iPad
Native macOS client	Score library, recognition jobs, practice, and session history	macOS 13+; SwiftUI split workspace

Native Apple clients send PDFs and images to the recognition bridge you configure; they do not run the Java recognition engine on the device. Existing MusicXML files can go straight into practice. Full manual score correction remains in the desktop editor.

Apple builds are currently for development and testing, with no App Store release. Installing on a physical device or distributing a build requires your own signing setup. See the Apple client guide and macOS desktop packaging guide.

Quick start

Use the desktop app

1. Download a package for your system from Releases, following that version's release notes.
2. For a ZIP distribution, extract it and run bin/NoteLite.bat on Windows or bin/NoteLite on Linux / macOS. These packages require Java 21. macOS installers that bundle Java do not need a separate runtime.
3. Open a PDF or sheet music image, run recognition, and review the result in the editor.
4. Export MusicXML / MIDI, or choose Book → Instrument practice studio....

For a score exported by another application, choose Book → Import external recognition result for practice.... Distributions built from the current source also include bin/PracticeStudio.bat / bin/PracticeStudio for opening practice directly. Launch without a file to load the example score.

Practice uses the imported score as its reference. Check recognition results before starting so a recognition error is not treated as a playing mistake. Older releases may not include features present in the current source.

Build from source

Install JDK 21 and point JAVA_HOME to it:

git clone https://github.com/Lucas0623z/NoteLite.git
cd NoteLite

# Start the original desktop editor
./gradlew :app:run --no-daemon

# Package the editor and practice launchers
./gradlew :app:distZip --no-daemon

Use ./gradlew.bat on Windows. Distribution ZIPs are written to app/build/distributions/. If OCR language data is needed for your first recognition run, configure it in the app's language settings.

Built practice assets are included in the repository. After changing the practice interface, rebuild them with Node.js 20+:

cd practice-web
npm ci
npm test
npm run build

Native Apple clients require Xcode and XcodeGen on a Mac. Follow apple/README.md for the full setup.

Benchmarks and documentation

Recognition, MIDI export, and practice input are tested separately. Results from small test sets do not establish accuracy for every score or instrument.

Guide	Contents
Image / PDF to MIDI benchmark	Original inputs, independent references, actual recognition outputs, and reproduction steps
MIDI export validation	Pitch, timing, and regression checks for MusicXML-to-MIDI export
Practice guide and recorded instrument tests	Input scope, known limitations, sample sources, and test commands
Apple clients	Builds, signing setup, interface tests, and physical-device validation
Recognition bridge	Running a recognition service on your computer or server
macOS desktop packaging	Apple Silicon / Intel installers, signing, and notarization

Open-source credits and licensing

• Audiveris: desktop recognition and score editing. Derived source files retain AGPL-3.0-or-later notices.
• OpenSheetMusicDisplay: practice score rendering.
• Pitchy: single-voice pitch detection.
• Lucide: practice interface icons.

This repository contains code and resources under different licenses. The root MIT notice, source-file headers, upstream licenses, and practice third-party notices apply to their respective portions. The complete Audiveris-derived application should not be treated as MIT-only.

---

Maintained by Yuexuan Zhang · @Lucas0623z. Share questions and suggestions through Issues or Lucas.z0623@outlook.com.
