CountTimeProgressView - An Android library that provides a count time circular progress view effect.

中文版

Sample

Usage

For a working implementation of this project see the CountTimeProgressView.kt .

step 1

Include the library as a local library project or add the dependency in your build.gradle.

dependencies {
    compile 'com.sfyc.ctpv:library:1.1.3'
}

Step 2

Include the CountTimeProgressView widget in your layout. And you can customize it like this.

<com.sfyc.ctpv.CountTimeProgressView
    android:id="@+id/countTimeProgressView"
    android:layout_width="84dp"
    android:layout_height="84dp"
    android:layout_alignParentRight="true"
    app:backgroundColorCenter="#FF7F00"
    app:borderWidth="3dp"
    app:borderBottomColor="#D60000"
    app:borderDrawColor="#CDC8EA"
    app:markBallColor="#002FFF"
    app:markBallFlag="true"
    app:markBallWidth="3dp"
    app:titleCenterColor="#000000"
    app:titleCenterText="点击跳过"
    app:titleCenterSize="14sp"
    app:countTime="5000"
    app:startAngle="0"
    app:textStyle="jump"
    app:clockwise="true"
    />

Step 3

You can write some animation codes to the callbacks such as addOnEndListener, etc in your Activity. in Java:

countTimeProgressView.setBackgroundColorCenter(Color.WHITE);
countTimeProgressView.setBorderWidth(3);
countTimeProgressView.setBorderBottomColor(Color.GRAY);
countTimeProgressView.setBorderDrawColor(Color.RED);
countTimeProgressView.setMarkBallColor(Color.GREEN);

countTimeProgressView.setMarkBallFlag(true);
countTimeProgressView.setMarkBallWidth(4);
countTimeProgressView.setTitleCenterText("");
countTimeProgressView.setTitleCenterTextSize(16);
countTimeProgressView.setTitleCenterTextColor(Color.BLACK);

countTimeProgressView.setCountTime(5000L);
countTimeProgressView.setStartAngle(0);
countTimeProgressView.setTextStyle(CountTimeProgressView.TextStyle.INSTANCE.getCLOCK());
countTimeProgressView.setClockwise(true);

countTimeProgressView.addOnEndListener(new CountTimeProgressView.OnEndListener() {
    @Override
    public void onAnimationEnd() {
        Toast.makeText(SimpleActivity.this, "时间到", Toast.LENGTH_SHORT).show();
    }
    @Override
    public void onClick(long overageTime) {
        if (countTimeProgressView.isRunning()) {
            countTimeProgressView.cancelCountTimeAnimation();
        } else {
            countTimeProgressView.startCountTimeAnimation();
        }
    }
});

countTimeProgressView.startCountTimeAnimation();

in Kotlin:

with(countTimeProgressView){
    startAngle = 0f
    countTime = 6000L
    textStyle = CountTimeProgressView.TextStyle.SECOND
    borderWidth = 4f
    borderBottomColor = Color.GRAY
    borderDrawColor = Color.RED
    backgroundColorCenter = Color.WHITE
    markBallFlag = true
    markBallWidth = 6f
    markBallColor = Color.GREEN
    titleCenterText = "jump（%s）s"
    titleCenterTextColor = Color.BLACK
    titleCenterTextSize = 16f
    addOnEndListener(object : CountTimeProgressView.OnEndListener {
        override fun onAnimationEnd() {
            Toast.makeText(this@SimpleActivity, "时间到", Toast.LENGTH_SHORT).show()
        }

        override fun onClick(overageTime: Long) {
            if (countTimeProgressView.isRunning) {
                countTimeProgressView.cancelCountTimeAnimation()
                Log.e("overageTime", "overageTime = " + overageTime)
            } else {
                countTimeProgressView.startCountTimeAnimation()
            }
        }
    })
}
countTimeProgressView.startCountTimeAnimation()

Customization

Please feel free to :)

name	format	description
backgroundColorCenter	color	Background_Color, default is #00BCD4
borderWidth	dimension	Circular locus border width, default is 3dp
borderDrawColor	color	Draw color，dafault is #4dd0e1
borderBottomColor	color	Bottom Color，dafault is #D32F2F
markBallWidth	dimension	Ball width , default is 6dp
markBallColor	color	Ball Color , default is #536DFE
markBallFlag	boolean	Ball isDisplay，default is true
startAngle	float	Ball start angle , default is 0f
clockwise	boolean	Clockwise or Counter-clockwise , default is true
countTime	integer	Count time , default is 0
textStyle	enum	Center text style , default is jump，Other options are available "second，clock，none"
titleCenterText	string	Center text , displayed only when textStyle is "jump"
titleCenterColor	color	Center text color , default is #FFFFFF.
titleCenterSize	dimension	Center text size , default is 16sp.

Change Log

1.1.3(2017-11-11) RuBuild Code by Kotlin

1.1.1(2017-3-27) update Stop running when exiting

1.1.0 (2017-2-7) update anim colckWise

1.0.0 (2016-12-20) First commit

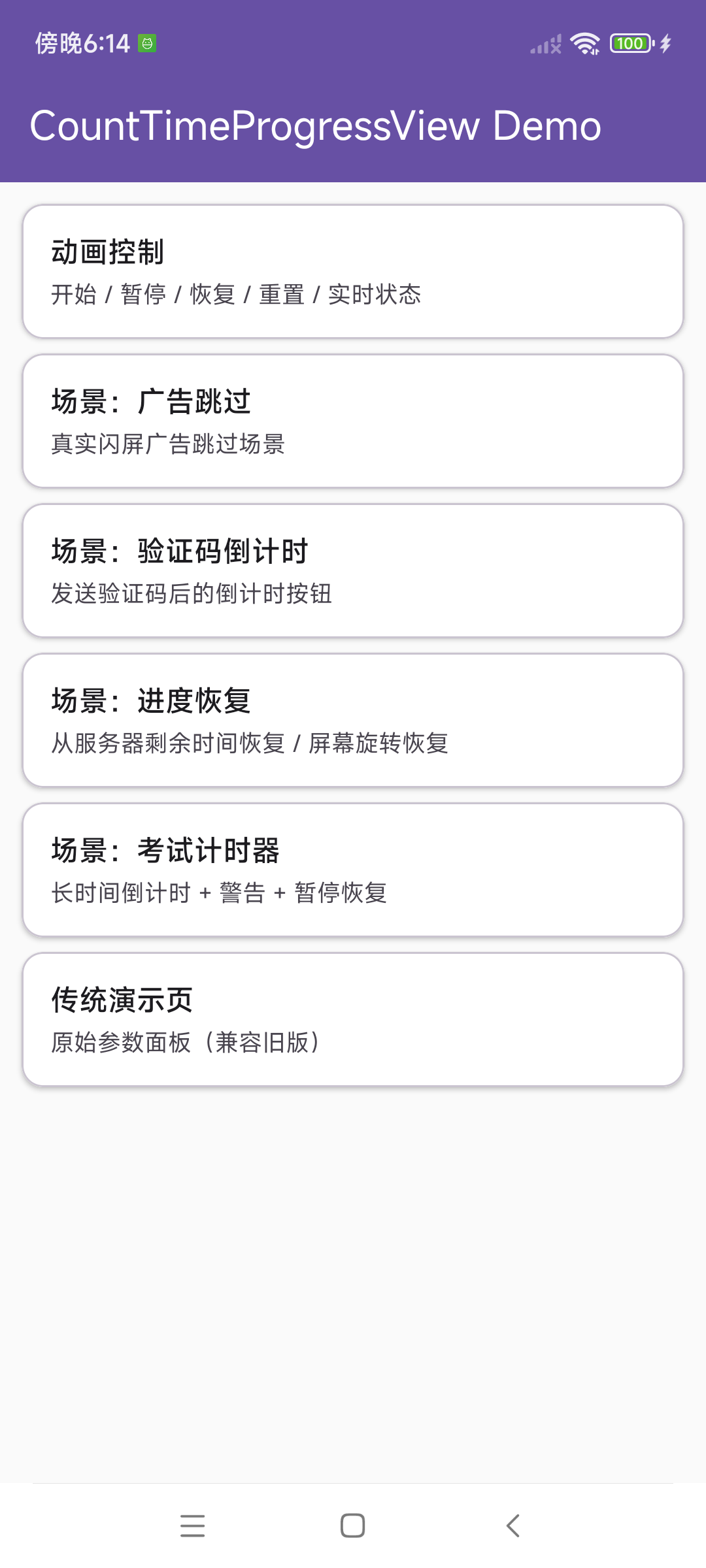

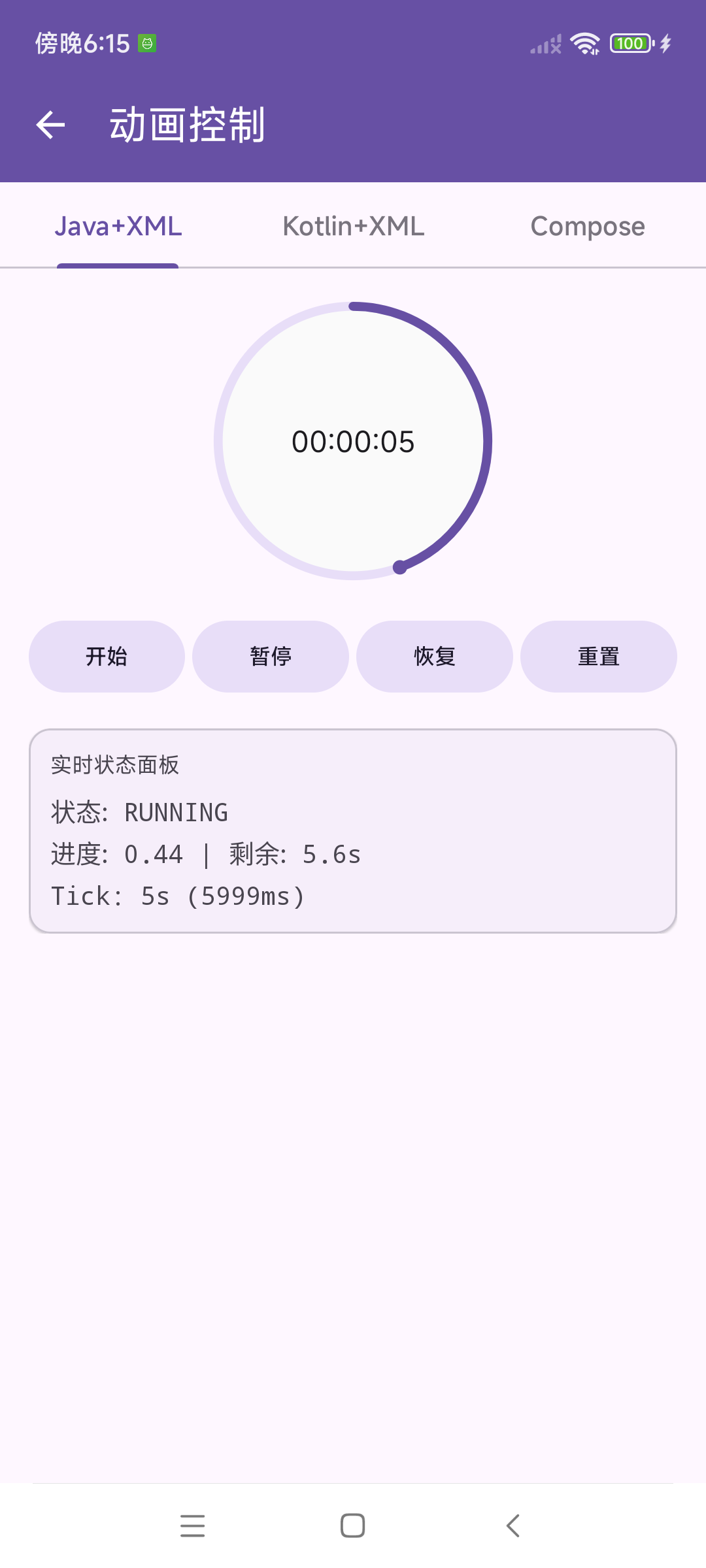

Demo

Download

Thanks

Inspired by

tangqi92 created by WaveLoadingView
